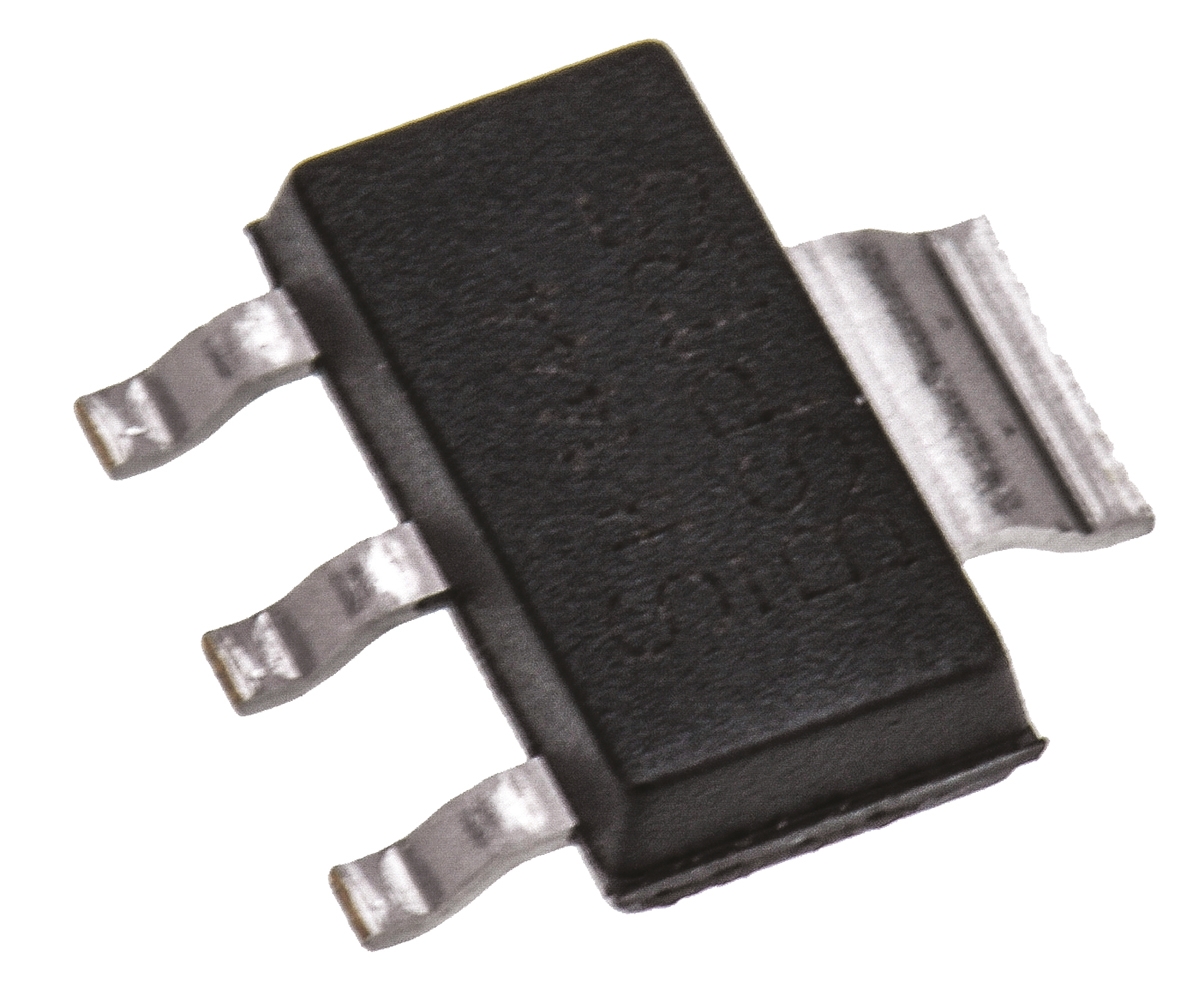

Infineon BSP135H6327XTSA1 N-channel MOSFET, 120 mA, 600 V Depletion SIPMOS, 3+Tab-Pin SOT-223

BSP135H6327XTSA1 Infineon  N-channel MOSFET, 120 mA, 600 V Depletion SIPMOS, 3+Tab-Pin SOT-223
Infineon

Product Information

Maximum Drain Source Voltage:
600 V
Typical Gate Charge @ Vgs:
3.7 nC @ 5 V
Mounting Type:
Surface Mount
Channel Mode:
Depletion
Maximum Power Dissipation:
1.8 W
Series:
SIPMOS®
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.6mm
Width:
3.5mm
Length:
6.5mm
Maximum Drain Source Resistance:
45 Ω
Package Type:
SOT-223
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
120 mA
Transistor Material:
Si
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 120 mA 600 V Depletion SIPMOS 3+Tab-Pin SOT-223 manufactured by Infineon. The manufacturer part number is BSP135H6327XTSA1. It has a maximum of 600 v drain source voltage. With a typical gate charge at Vgs includes 3.7 nc @ 5 v. The product is available in surface mount configuration. The product carries depletion channel mode. Provides up to 1.8 w maximum power dissipation. The product sipmos®, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.6mm. Furthermore, the product is 3.5mm wide. Its accurate length is 6.5mm. It provides up to 45 ω maximum drain source resistance. The package is a sort of sot-223. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 120 ma of maximum continuous drain current. The transistor is manufactured from highly durable si material. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
