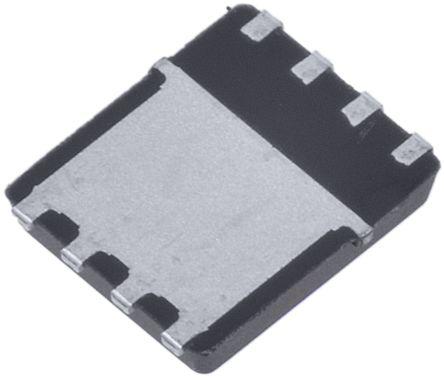

Infineon BSC057N03LSGATMA1 N-channel MOSFET, 71 A, 30 V OptiMOS 3, 8-Pin TDSON

BSC057N03LSGATMA1 Infineon N-channel MOSFET, 71 A, 30 V OptiMOS 3, 8-Pin TDSON
BSC057N03LSGATMA1
Infineon

Product Information

Maximum Continuous Drain Current:
71 A
Transistor Material:
Si
Width:
5.49mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2.2V
Package Type:
TDSON
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
22 nC @ 10 V
Channel Type:
N
Length:
6.1mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
45 W
Series:
OptiMOS 3
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.1mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
8.5 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 71 A 30 V OptiMOS 3 8-Pin TDSON manufactured by Infineon. The manufacturer part number is BSC057N03LSGATMA1. While 71 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 5.49mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 2.2v of maximum gate threshold voltage. The package is a sort of tdson. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 22 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 6.1mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 45 w maximum power dissipation. The product optimos 3, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 8.5 mω maximum drain source resistance.

pdf icon
BSC057N03LS G, OptiMOS3 Power-MOSFET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
