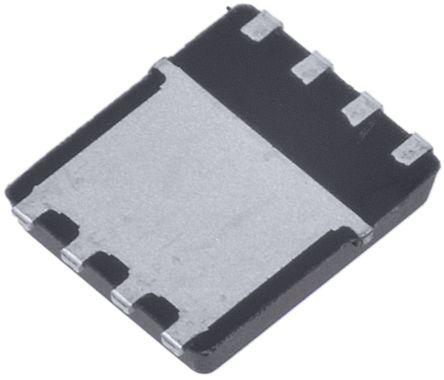

Infineon BSC014N03MSGATMA1 N-channel MOSFET, 100 A, 30 V OptiMOS 3, 8-Pin TDSON

BSC014N03MSGATMA1 Infineon  N-channel MOSFET, 100 A, 30 V OptiMOS 3, 8-Pin TDSON
BSC014N03MSGATMA1
Infineon

Product Information

Maximum Drain Source Voltage:
30 V
Typical Gate Charge @ Vgs:
130 nC @ 4.5 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
139 W
Series:
OptiMOS 3
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.1mm
Width:
5.35mm
Length:
6.1mm
Maximum Drain Source Resistance:
1.75 mΩ
Package Type:
TDSON
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
100 A
Transistor Material:
Si
Forward Diode Voltage:
1.1V
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
8
Transistor Configuration:
Single
Checking for live stock

This is N-channel MOSFET 100 A 30 V OptiMOS 3 8-Pin TDSON manufactured by Infineon. The manufacturer part number is BSC014N03MSGATMA1. It has a maximum of 30 v drain source voltage. With a typical gate charge at Vgs includes 130 nc @ 4.5 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 139 w maximum power dissipation. The product optimos 3, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.1mm. Furthermore, the product is 5.35mm wide. Its accurate length is 6.1mm. It provides up to 1.75 mω maximum drain source resistance. The package is a sort of tdson. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 100 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Its forward diode voltage is 1.1v . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 8 pins. The product offers single transistor configuration.
