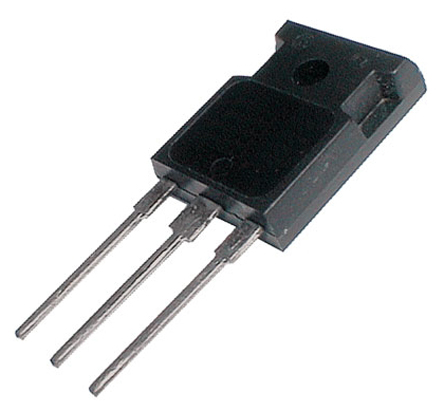

ROHM SCT3022ALGC11 N-channel SiC MOSFET, 93 A, 650 V, 3-Pin TO-247N

SCT3022ALGC11 ROHM N-channel SiC MOSFET, 93 A, 650 V, 3-Pin TO-247N
ROHM

Product Information

Maximum Drain Source Voltage:
650 V
Typical Gate Charge @ Vgs:
133 nC @ 18 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
262 W
Maximum Gate Source Voltage:
22 V
Maximum Gate Threshold Voltage:
5.6V
Height:
21mm
Width:
5mm
Length:
16mm
Minimum Gate Threshold Voltage:
2.7V
Package Type:
TO-247N
Number of Elements per Chip:
1
Maximum Continuous Drain Current:
93 A
Transistor Material:
SiC
Maximum Drain Source Resistance:
29 mΩ
Channel Type:
N
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is N-channel SiC MOSFET 93 A 650 V 3-Pin TO-247N manufactured by ROHM. The manufacturer part number is SCT3022ALGC11. It has a maximum of 650 v drain source voltage. With a typical gate charge at Vgs includes 133 nc @ 18 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 262 w maximum power dissipation. It features a maximum gate source voltage of 22 v. The product carries 5.6v of maximum gate threshold voltage. In addition, the height is 21mm. Furthermore, the product is 5mm wide. Its accurate length is 16mm. Whereas its minimum gate threshold voltage includes 2.7v. The package is a sort of to-247n. It consists of 1 elements per chip. While 93 a of maximum continuous drain current. The transistor is manufactured from highly durable sic material. It provides up to 29 mω maximum drain source resistance. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +175 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
SCT3022ALGC11 Datasheet(Technical Reference)
