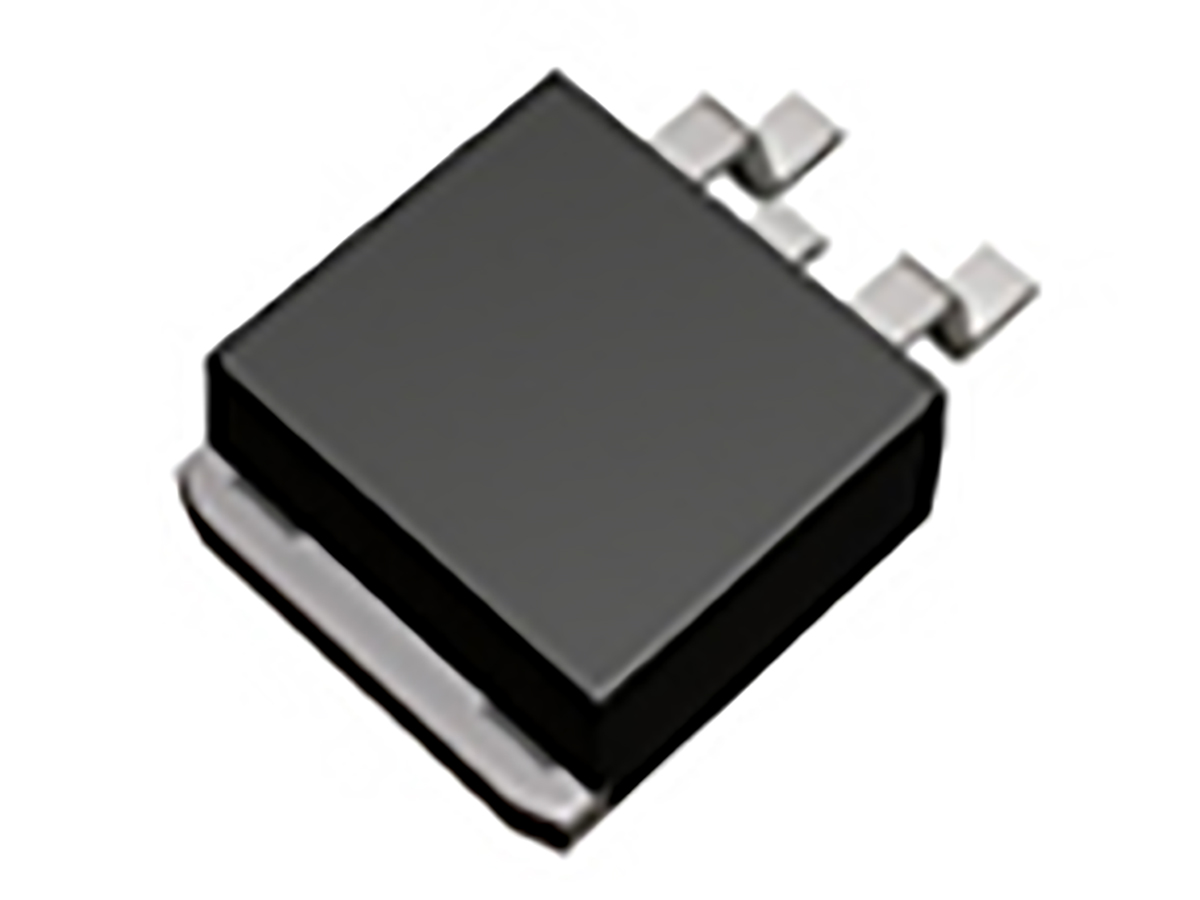

ROHM RJ1G08CGNTLL N-channel MOSFET, 80 A, 40 V RJ1G08CGN, 2+Tab-Pin D2PAK

RJ1G08CGNTLL ROHM N-channel MOSFET, 80 A, 40 V RJ1G08CGN, 2+Tab-Pin D2PAK
ROHM

Product Information

Maximum Continuous Drain Current:
80 A
Width:
9.2mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
2.5V
Maximum Drain Source Resistance:
6.7 mΩ
Package Type:
TO-263AB
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
31.1 nC @ 10 V
Channel Type:
N
Length:
10.4mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
78 W
Series:
RJ1G08CGN
Maximum Gate Source Voltage:
±20 V
Height:
4.7mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 80 A 40 V RJ1G08CGN 2+Tab-Pin D2PAK manufactured by ROHM. The manufacturer part number is RJ1G08CGNTLL. While 80 a of maximum continuous drain current. Furthermore, the product is 9.2mm wide. The product offers single transistor configuration. It has a maximum of 40 v drain source voltage. The product carries 2.5v of maximum gate threshold voltage. It provides up to 6.7 mω maximum drain source resistance. The package is a sort of to-263ab. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 31.1 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.4mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 78 w maximum power dissipation. The product rj1g08cgn, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. In addition, the height is 4.7mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v .
