Category:
Power MOSFET
Dimensions:
16.13 x 5.21 x 21.34mm
Maximum Continuous Drain Current:
76 A
Width:
5.21mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
4V

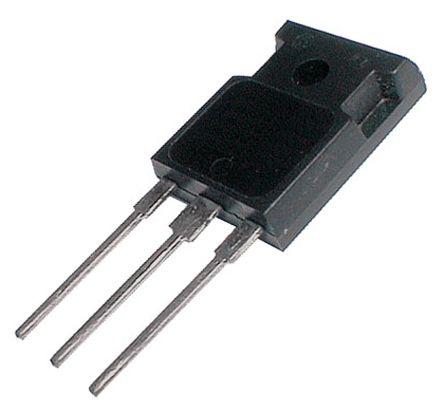

Package Type:
TO-247
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
260 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
6500 pF @ 25 V
Length:
16.13mm
Pin Count:
3
Forward Transconductance:
45S
Typical Turn-Off Delay Time:
450 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
120 W
Maximum Gate Source Voltage:
±20 V
Height:
21.34mm
Typical Turn-On Delay Time:
65 ns
Forward Diode Voltage:
1.5V
Maximum Drain Source Resistance:
80 mΩ
