Maximum Drain Source Voltage:
30 V
Typical Gate Charge @ Vgs:
8.4 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1.5 W
Series:
QH8MA2
Maximum Gate Source Voltage:
±20 V
Maximum Gate Threshold Voltage:
2.5 (N Channel) V, 2.5 (P Channel) V
Height:
0.8mm
Width:
2.5mm
Length:
3.1mm
Maximum Drain Source Resistance:
115 mΩ
Package Type:
TSMT-8
Number of Elements per Chip:
2
Maximum Continuous Drain Current:
4.5 A, 3 A
Minimum Gate Threshold Voltage:
1 (N Channel) V, 1 (P Channel) V
Forward Diode Voltage:
1.2V
Channel Type:
N, P
Maximum Operating Temperature:
+150 °C
Pin Count:
8

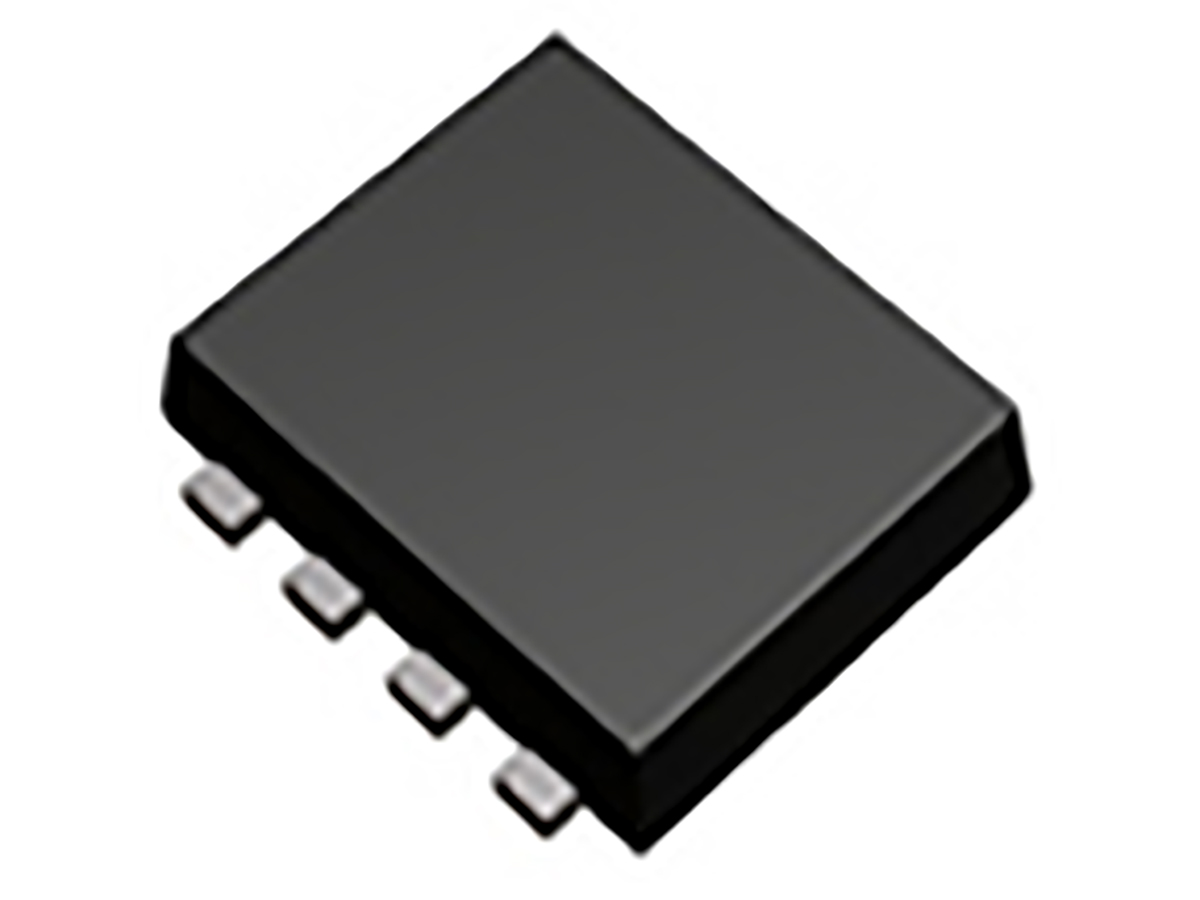

This is Dual N/P-channel MOSFET 3 (P Channel) A 4.5 (N Channel) A 30 (N Channel) V 30 (P Channel) V QH8MA2 manufactured by ROHM. The manufacturer part number is QH8MA2TCR. It has a maximum of 30 v drain source voltage. With a typical gate charge at Vgs includes 8.4 nc @ 10 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 1.5 w maximum power dissipation. The product qh8ma2, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. The product carries 2.5 (n channel) v, 2.5 (p channel) v of maximum gate threshold voltage. In addition, the height is 0.8mm. Furthermore, the product is 2.5mm wide. Its accurate length is 3.1mm. It provides up to 115 mω maximum drain source resistance. The package is a sort of tsmt-8. It consists of 2 elements per chip. While 4.5 a, 3 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 1 (n channel) v, 1 (p channel) v. Its forward diode voltage is 1.2v . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 8 pins.
