Category:
Small Signal MOSFET
Dimensions:
3 x 1.8 x 0.95mm
Maximum Continuous Drain Current:
1.5 A
Width:
1.8mm
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
2V

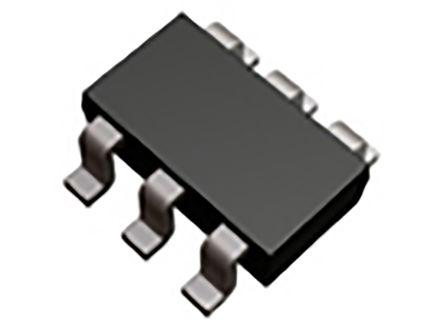

Package Type:
TSMT
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
0.7V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
3 nC @ 4.5 V
Channel Type:
P
Typical Input Capacitance @ Vds:
270 pF @ -10 V
Length:
3mm
Pin Count:
6
Typical Turn-Off Delay Time:
45 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1.25 W
Series:
QH6J1
Maximum Gate Source Voltage:
±12 V
Height:
0.95mm
Typical Turn-On Delay Time:
10 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
430 mΩ
