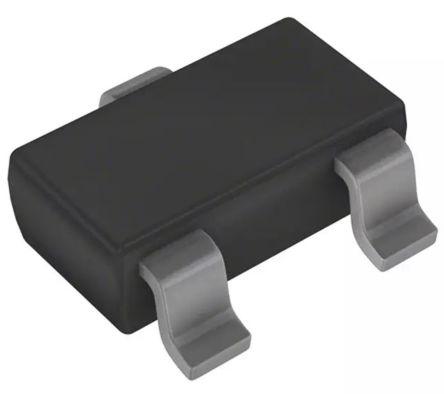

Taiwan Semi TSM2303CX RFG P-channel MOSFET, 1.3 A, 30 V, 3-Pin SOT-23

TSM2303CX-RFG Taiwan Semi TSM2303CX RFG P-channel MOSFET, 1.3 A, 30 V, 3-Pin SOT-23
Taiwan Semiconductor

Product Information

Maximum Continuous Drain Current:
1.3 A
Width:
1.7mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
3V
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
10 nC @ 4.5 V
Channel Type:
P
Length:
3.1mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
700 mW
Maximum Gate Source Voltage:
±20 V
Height:
1.2mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
300 mΩ
RoHs Compliant
Checking for live stock

This is Taiwan Semi P-channel MOSFET 1.3 A 30 V 3-Pin SOT-23 manufactured by Taiwan Semiconductor. The manufacturer part number is TSM2303CX RFG. While 1.3 a of maximum continuous drain current. Furthermore, the product is 1.7mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 3v of maximum gate threshold voltage. The package is a sort of sot-23. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 10 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its accurate length is 3.1mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 700 mw maximum power dissipation. It features a maximum gate source voltage of ±20 v. In addition, the height is 1.2mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 300 mω maximum drain source resistance.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TSM2303CX RFG on website for other similar products.
We accept all major payment methods for all products including ET16768883. Please check your shopping cart at the time of order.
You can order Taiwan Semiconductor brand products with TSM2303CX RFG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Taiwan Semi TSM2303CX RFG P-channel MOSFET, 1.3 A, 30 V, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Taiwan Semi TSM2303CX RFG P-channel MOSFET, 1.3 A, 30 V, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16768883 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Taiwan Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16768883.
Yes. We ship TSM2303CX RFG Internationally to many countries around the world.
