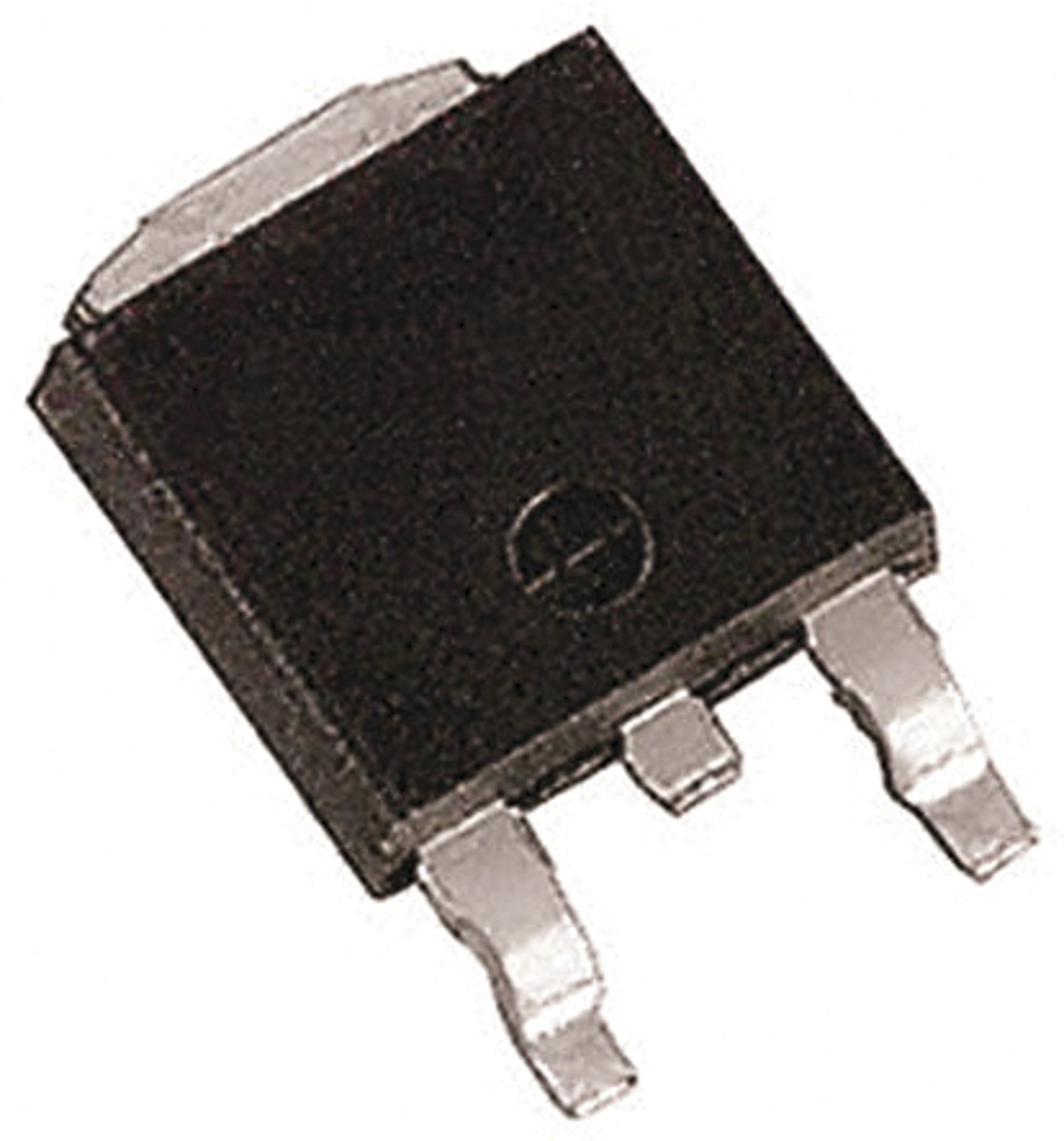

Taiwan Semi TSM060N03CP ROG N-channel MOSFET, 80 A, 30 V, 3 + Tab-Pin DPAK

TSM060N03CP-ROG Taiwan Semi TSM060N03CP ROG N-channel MOSFET, 80 A, 30 V, 3 + Tab-Pin DPAK
Taiwan Semiconductor

Product Information

Maximum Drain Source Voltage:
30 V
Typical Gate Charge @ Vgs:
11.1 nC @ 4.5 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
54 W
Maximum Gate Source Voltage:
±20 V
Maximum Gate Threshold Voltage:
2.5V
Height:
2.3mm
Width:
5.8mm
Length:
6.5mm
Maximum Drain Source Resistance:
9 mΩ
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Maximum Continuous Drain Current:
80 A
Minimum Gate Threshold Voltage:
1V
Forward Diode Voltage:
1V
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Taiwan Semi N-channel MOSFET 80 A 30 V 3 + Tab-Pin DPAK manufactured by Taiwan Semiconductor. The manufacturer part number is TSM060N03CP ROG. It has a maximum of 30 v drain source voltage. With a typical gate charge at Vgs includes 11.1 nc @ 4.5 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 54 w maximum power dissipation. It features a maximum gate source voltage of ±20 v. The product carries 2.5v of maximum gate threshold voltage. In addition, the height is 2.3mm. Furthermore, the product is 5.8mm wide. Its accurate length is 6.5mm. It provides up to 9 mω maximum drain source resistance. The package is a sort of dpak (to-252). It consists of 1 elements per chip. While 80 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 1v. Its forward diode voltage is 1v . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
