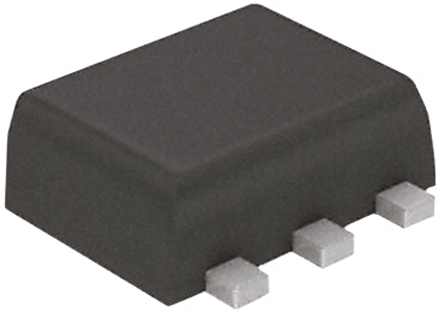

Diodes Inc DMG1024UV-7 Dual N-channel MOSFET, 1.38 A, 20 V, 6-Pin SOT-563

DMG1024UV-7 Diodes Inc Dual N-channel MOSFET, 1.38 A, 20 V, 6-Pin SOT-563
DiodesZetex

Product Information

Maximum Drain Source Voltage:
20 V
Typical Gate Charge @ Vgs:
0.737 nC @ 4.5 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
530 mW
Maximum Gate Source Voltage:
-6 V, +6 V
Maximum Gate Threshold Voltage:
1V
Height:
0.6mm
Width:
1.25mm
Length:
1.7mm
Maximum Drain Source Resistance:
10 Ω
Package Type:
SOT-563
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
1.38 A
Transistor Material:
Si
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Transistor Configuration:
Isolated
RoHs Compliant
Checking for live stock

This is Diodes Inc Dual N-channel MOSFET 1.38 A 20 V 6-Pin SOT-563 manufactured by DiodesZetex. The manufacturer part number is DMG1024UV-7. It has a maximum of 20 v drain source voltage. With a typical gate charge at Vgs includes 0.737 nc @ 4.5 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 530 mw maximum power dissipation. It features a maximum gate source voltage of -6 v, +6 v. The product carries 1v of maximum gate threshold voltage. In addition, the height is 0.6mm. Furthermore, the product is 1.25mm wide. Its accurate length is 1.7mm. It provides up to 10 ω maximum drain source resistance. The package is a sort of sot-563. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 1.38 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 6 pins. The product offers isolated transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
DMG1024UV-7 Dual N-Channel Enhancement Mode MOSFET Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
