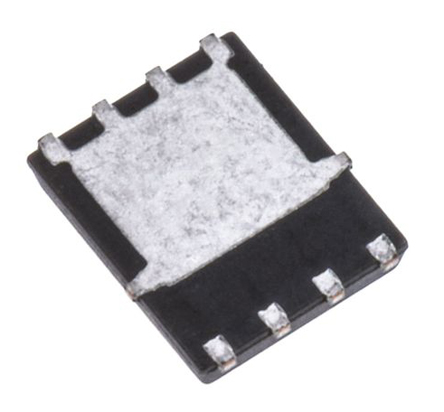

Vishay SIR680DP-T1-RE3 N-channel MOSFET, 100 A, 80 V TrenchFET, 8-Pin SO

SIR680DP-T1-RE3 Vishay  N-channel MOSFET, 100 A, 80 V TrenchFET, 8-Pin SO
Vishay

Product Information

Maximum Continuous Drain Current:
100 A
Width:
5.26mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
80 V
Maximum Gate Threshold Voltage:
3.4V
Package Type:
PowerPAK SO-8
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
69.5 nC @ 10 V
Channel Type:
N
Length:
6.25mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
104 W
Series:
TrenchFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.12mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.1V
Maximum Drain Source Resistance:
3.4 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 100 A 80 V TrenchFET 8-Pin SO manufactured by Vishay. The manufacturer part number is SIR680DP-T1-RE3. While 100 a of maximum continuous drain current. Furthermore, the product is 5.26mm wide. The product offers single transistor configuration. It has a maximum of 80 v drain source voltage. The product carries 3.4v of maximum gate threshold voltage. The package is a sort of powerpak so-8. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 69.5 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 6.25mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 104 w maximum power dissipation. The product trenchfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.12mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.1v . It provides up to 3.4 mω maximum drain source resistance.

pdf icon
SiR680DP, N-Channel 80V MOSFET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
