Category:
Power MOSFET
Dimensions:
5.99 x 5 x 1.12mm
Maximum Continuous Drain Current:
17 A
Transistor Material:
Si
Width:
5mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V

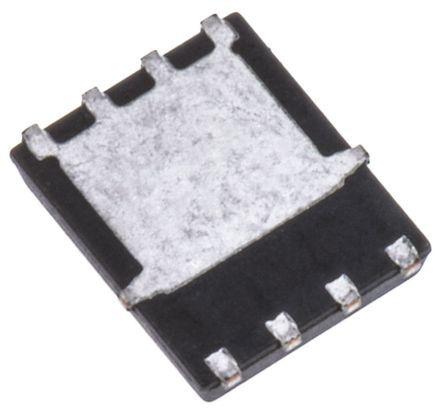

Package Type:
PowerPAK SO
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
15 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
830 pF @ 10 V
Length:
5.99mm
Pin Count:
8
Typical Turn-Off Delay Time:
17 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
29.8 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.12mm
Typical Turn-On Delay Time:
15 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
11.5 mΩ
