Category:
Power MOSFET
Dimensions:
15.87 x 5.31 x 20.82mm
Maximum Continuous Drain Current:
28 A
Transistor Material:
Si
Width:
5.31mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
4V
Maximum Drain Source Resistance:
120 mΩ
Package Type:

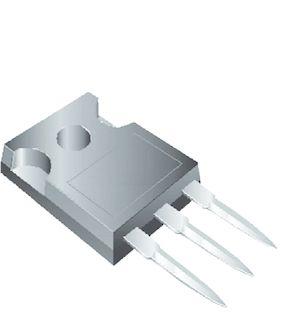

TO-247AC
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
60 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2565 pF @ 100 V
Length:
15.87mm
Pin Count:
3
Forward Transconductance:
19S
Typical Turn-Off Delay Time:
79 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
250 W
Series:
EL-Series
Maximum Gate Source Voltage:
±30 V
Height:
20.82mm
Typical Turn-On Delay Time:
26 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Manufacturer Standard Lead Time:
46 Weeks
Rds On (Max) @ Id, Vgs:
120mOhm @ 15A, 10V
Detailed Description:
N-Channel 600V 28A (Tc) 250W (Tc) Through Hole TO-247AC
Input Capacitance (Ciss) (Max) @ Vds:
2565pF @ 100V
Mounting Type:
Through Hole
Vgs(th) (Max) @ Id:
4V @ 250µA
Series:
EL
Vgs (Max):
±30V
Gate Charge (Qg) (Max) @ Vgs:
120nC @ 10V
Supplier Device Package:
TO-247AC
Drive Voltage (Max Rds On, Min Rds On):
10V
Packaging:
Tube
Operating Temperature:
-55°C ~ 150°C (TJ)
FET Type:
N-Channel
Package / Case:
TO-247-3
Power Dissipation (Max):
250W (Tc)
Drain to Source Voltage (Vdss):
600V
Current - Continuous Drain (Id) @ 25°C:
28A (Tc)
Technology:
MOSFET (Metal Oxide)
Manufacturer:
Vishay Siliconix
