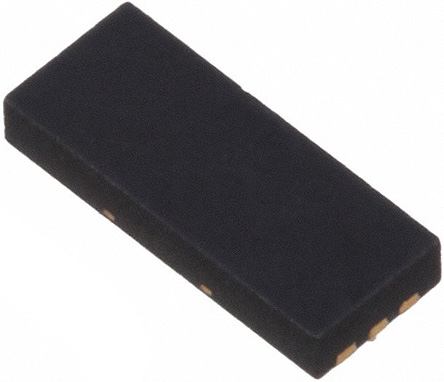

Diodes Inc DMN2013UFX-7 Dual N-channel MOSFET, 10 A, 20 V, 6-Pin WDFN

DMN2013UFX-7 Diodes Inc Dual N-channel MOSFET, 10 A, 20 V, 6-Pin WDFN
DiodesZetex

Product Information

Maximum Continuous Drain Current:
10 A
Transistor Material:
Si
Width:
5.1mm
Transistor Configuration:
Isolated
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
1.1V
Package Type:
WDFN
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
0.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
57.4 nC @ 8 V
Channel Type:
N
Length:
2.1mm
Pin Count:
6
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2.14 W
Maximum Gate Source Voltage:
-8 V, +8 V
Height:
0.8mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
14 mΩ
RoHs Compliant
Checking for live stock

This is Diodes Inc Dual N-channel MOSFET 10 A 20 V 6-Pin WDFN manufactured by DiodesZetex. The manufacturer part number is DMN2013UFX-7. While 10 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 5.1mm wide. The product offers isolated transistor configuration. It has a maximum of 20 v drain source voltage. The product carries 1.1v of maximum gate threshold voltage. The package is a sort of wdfn. It consists of 2 elements per chip. Whereas its minimum gate threshold voltage includes 0.5v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 57.4 nc @ 8 v. The product is available in [Cannel Type] channel. Its accurate length is 2.1mm. It contains 6 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 2.14 w maximum power dissipation. It features a maximum gate source voltage of -8 v, +8 v. In addition, the height is 0.8mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 14 mω maximum drain source resistance.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
DMN2013UFX, Dual N-Channel Enhancement Mode MOSFET(Technical Reference)
