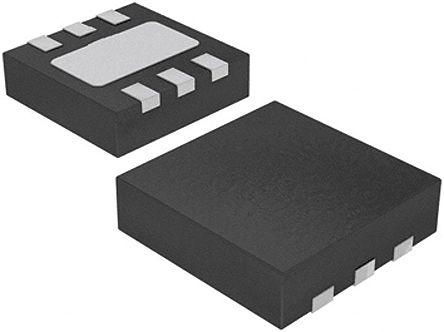

Diodes Inc DMP2021UFDF-7 P-channel MOSFET, 11 A, 20 V, 6-Pin U-DFN2020

DMP2021UFDF-7 Diodes Inc P-channel MOSFET, 11 A, 20 V, 6-Pin U-DFN2020
DiodesZetex

Product Information

Maximum Continuous Drain Current:
11 A
Transistor Material:
Si
Width:
2.05mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
1V
Package Type:
U-DFN2020
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.35V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
59 nC @ 8 V
Channel Type:
P
Length:
2.05mm
Pin Count:
6
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2.02 W
Maximum Gate Source Voltage:
-8 V, +8 V
Height:
0.58mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
80 mΩ
RoHs Compliant
Checking for live stock

This is Diodes Inc P-channel MOSFET 11 A 20 V 6-Pin U-DFN2020 manufactured by DiodesZetex. The manufacturer part number is DMP2021UFDF-7. While 11 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 2.05mm wide. The product offers single transistor configuration. It has a maximum of 20 v drain source voltage. The product carries 1v of maximum gate threshold voltage. The package is a sort of u-dfn2020. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 0.35v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 59 nc @ 8 v. The product is available in [Cannel Type] channel. Its accurate length is 2.05mm. It contains 6 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 2.02 w maximum power dissipation. It features a maximum gate source voltage of -8 v, +8 v. In addition, the height is 0.58mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 80 mω maximum drain source resistance.

pdf icon
DMP2021UFDF, P-Channel Enhancement Mode MOSFET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
