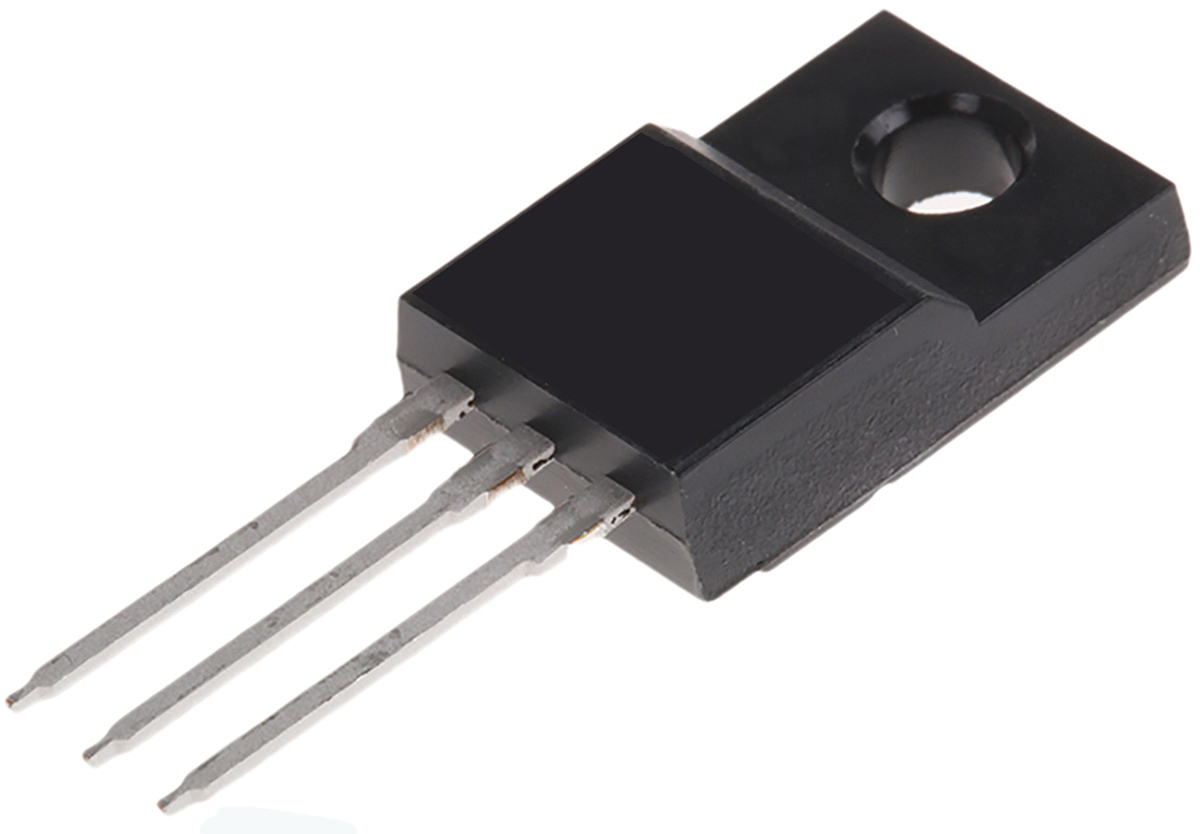

Toshiba TK16A60W,S4VX(M N-channel MOSFET, 15.8 A, 600 V TK, 3-Pin TO-220SIS

TK16A60W-S4VX-M Toshiba TK16A60W,S4VX(M N-channel MOSFET, 15.8 A, 600 V TK, 3-Pin TO-220SIS
TK16A60W,S4VX(M
Toshiba

Product Information

Maximum Continuous Drain Current:
15.8 A
Transistor Material:
Si
Width:
4.5mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
3.7V
Package Type:
TO-220SIS
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
38 nC @ 10 V
Channel Type:
N
Length:
10mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
40 W
Series:
TK
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
15mm
Forward Diode Voltage:
1.7V
Maximum Drain Source Resistance:
190 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 15.8 A 600 V TK 3-Pin TO-220SIS manufactured by Toshiba. The manufacturer part number is TK16A60W,S4VX(M. While 15.8 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.5mm wide. The product offers single transistor configuration. It has a maximum of 600 v drain source voltage. The product carries 3.7v of maximum gate threshold voltage. The package is a sort of to-220sis. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 38 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 40 w maximum power dissipation. The product tk, is a highly preferred choice for users. It features a maximum gate source voltage of -30 v, +30 v. In addition, the height is 15mm. Its forward diode voltage is 1.7v . It provides up to 190 mω maximum drain source resistance.

pdf icon
TK16A60W, Silicon N-Channel DTMOS MOSFET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
