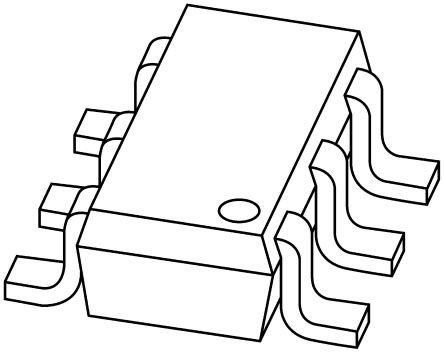

Infineon IRF5805TRPBF P-channel MOSFET, 3.8 A, 30 V HEXFET, 6-Pin TSOP

IRF5805TRPBF Infineon  P-channel MOSFET, 3.8 A, 30 V HEXFET, 6-Pin TSOP
Infineon

Product Information

Category:
Power MOSFET
Dimensions:
3 x 1.75 x 1.3mm
Maximum Continuous Drain Current:
3.8 A
Transistor Material:
Si
Width:
1.75mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Drain Source Resistance:
98 mΩ
Package Type:
TSOP
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
11 nC @ 10 V
Channel Type:
P
Typical Input Capacitance @ Vds:
511 pF @ 25 V
Length:
3mm
Pin Count:
6
Typical Turn-Off Delay Time:
90 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.3mm
Typical Turn-On Delay Time:
11 ns
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is P-channel MOSFET 3.8 A 30 V HEXFET 6-Pin TSOP manufactured by Infineon. The manufacturer part number is IRF5805TRPBF. It is of power mosfet category . The given dimensions of the product include 3 x 1.75 x 1.3mm. While 3.8 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 1.75mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. It provides up to 98 mω maximum drain source resistance. The package is a sort of tsop. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 11 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 511 pf @ 25 v . Its accurate length is 3mm. It contains 6 pins. Whereas, its typical turn-off delay time is about 90 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 2 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.3mm. In addition, it has a typical 11 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c.
