Category:
Power MOSFET
Dimensions:
10.54 x 9.65 x 4.83mm
Maximum Continuous Drain Current:
197 A
Transistor Material:
Si
Width:
9.65mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
75 V
Maximum Gate Threshold Voltage:
3.7V
Maximum Drain Source Resistance:
3.1 mΩ

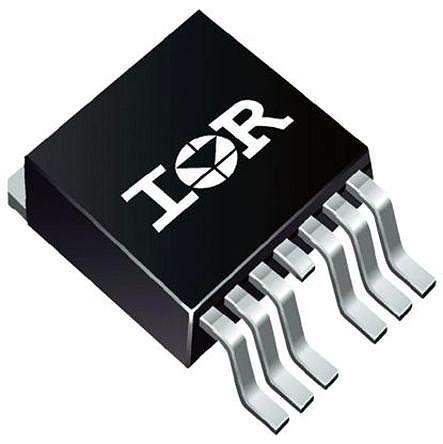

Package Type:
D2PAK (TO-263)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.1V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
180 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
10130 pF @ 25 V
Length:
10.54mm
Pin Count:
7
Forward Transconductance:
182S
Typical Turn-Off Delay Time:
123 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
294 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
4.83mm
Typical Turn-On Delay Time:
17 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
