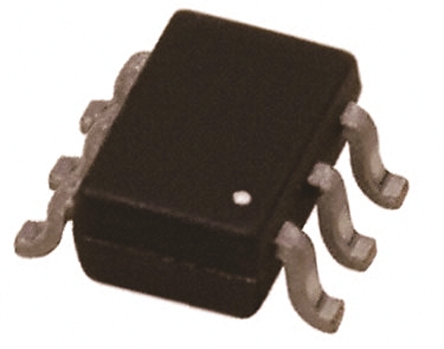

Infineon IRLMS6702TRPBF P-channel MOSFET, 2.4 A, 20 V HEXFET, 6-Pin Micro6

IRLMS6702TRPBF Infineon P-channel MOSFET, 2.4 A, 20 V HEXFET, 6-Pin Micro6
Infineon

Product Information

Maximum Continuous Drain Current:
2.4 A
Transistor Material:
Si
Width:
1.75mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
0.7V
Package Type:
Micro6
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.7V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
5.8 nC @ 4.5 V
Channel Type:
P
Length:
3mm
Pin Count:
6
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.7 W
Series:
HEXFET
Maximum Gate Source Voltage:
-12 V, +12 V
Height:
1.3mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
375 mΩ
RoHs Compliant
Checking for live stock

This is P-channel MOSFET 2.4 A 20 V HEXFET 6-Pin Micro6 manufactured by Infineon. The manufacturer part number is IRLMS6702TRPBF. While 2.4 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 1.75mm wide. The product offers single transistor configuration. It has a maximum of 20 v drain source voltage. The product carries 0.7v of maximum gate threshold voltage. The package is a sort of micro6. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 0.7v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 5.8 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its accurate length is 3mm. It contains 6 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 1.7 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -12 v, +12 v. In addition, the height is 1.3mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 375 mω maximum drain source resistance.

pdf icon
IRLMS6702PbF, HEXFET Power MOSFET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
