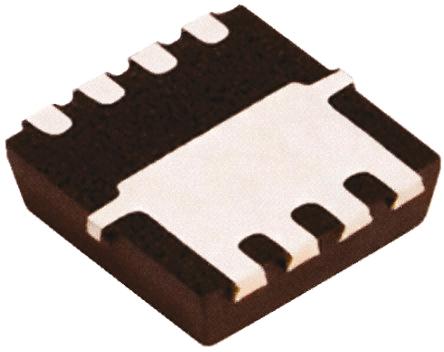

Vishay SQ7415AEN-T1_GE3 P-channel MOSFET, 11 A, 60 V SQ Rugged, 8-Pin PowerPAK 1212

SQ7415AEN-T1_GE3 Vishay  P-channel MOSFET, 11 A, 60 V SQ Rugged, 8-Pin PowerPAK 1212
Vishay

Product Information

Maximum Continuous Drain Current:
11 A
Transistor Material:
Si
Width:
3.05mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Package Type:
PowerPAK 1212-8
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.5V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
25.5 nC @ 10 V
Channel Type:
P
Length:
3.05mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
53 W
Series:
SQ Rugged
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.04mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
138 mΩ
RoHs Compliant
Checking for live stock

This is P-channel MOSFET 11 A 60 V SQ Rugged 8-Pin PowerPAK 1212 manufactured by Vishay. The manufacturer part number is SQ7415AEN-T1_GE3. While 11 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.05mm wide. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The package is a sort of powerpak 1212-8. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1.5v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 25.5 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 3.05mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 53 w maximum power dissipation. The product sq rugged, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.04mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 138 mω maximum drain source resistance.

pdf icon
SQ7415AEN, Automotive P-Channel 60V (D-S) 175degC MOSFET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
