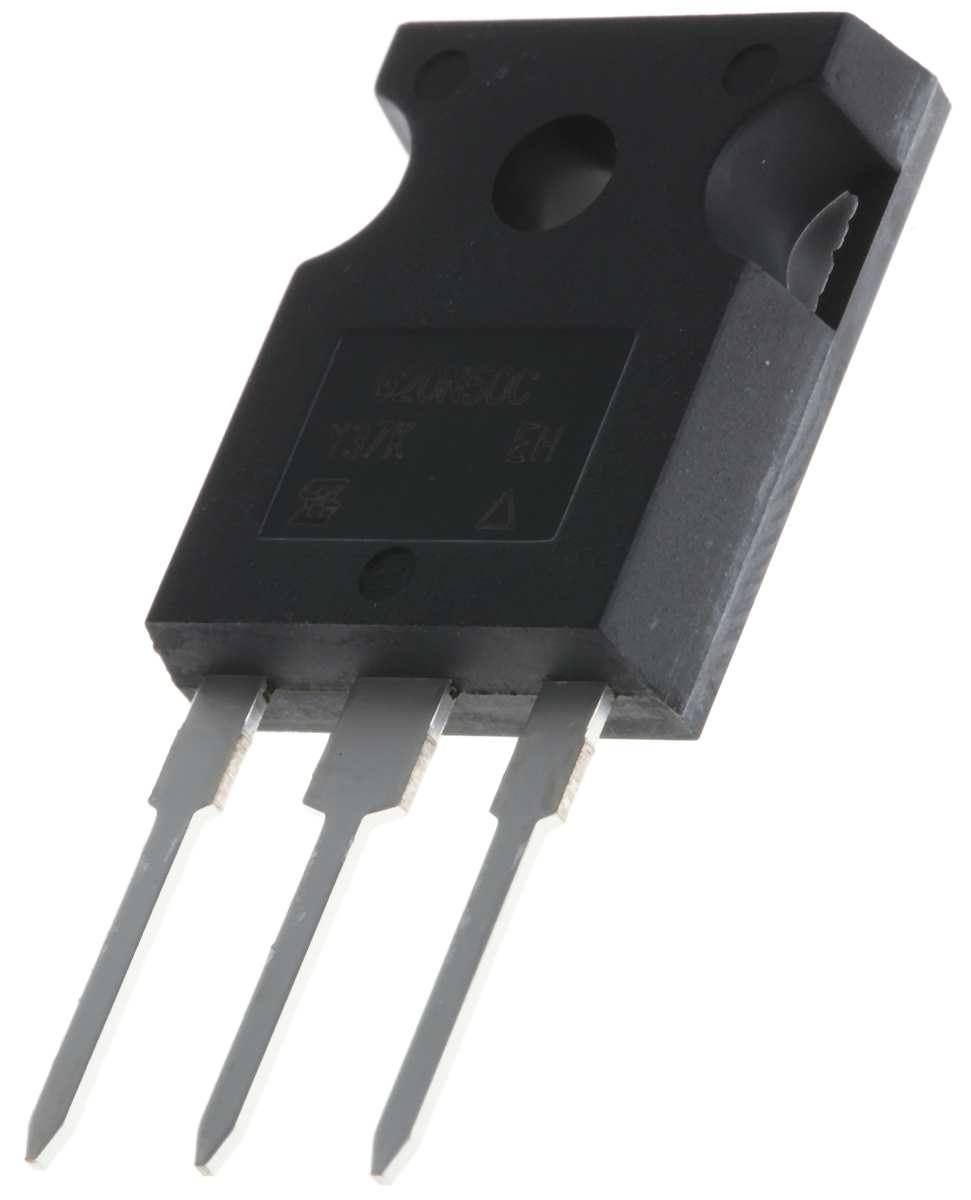

Vishay SIHG20N50C-E3 N-channel MOSFET, 20 A, 500 V, 3-Pin TO-247AC

SIHG20N50C-E3 Vishay  N-channel MOSFET, 20 A, 500 V, 3-Pin TO-247AC
Vishay

Product Information

Maximum Drain Source Voltage:
500 V
Typical Gate Charge @ Vgs:
65 nC @ 10 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
250 W
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
20.82mm
Width:
5.31mm
Length:
15.87mm
Minimum Gate Threshold Voltage:
3V
Package Type:
TO-247AC
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
20 A
Transistor Material:
Si
Maximum Drain Source Resistance:
270 mΩ
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 20 A 500 V 3-Pin TO-247AC manufactured by Vishay. The manufacturer part number is SIHG20N50C-E3. It has a maximum of 500 v drain source voltage. With a typical gate charge at Vgs includes 65 nc @ 10 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 250 w maximum power dissipation. It features a maximum gate source voltage of -30 v, +30 v. In addition, the height is 20.82mm. Furthermore, the product is 5.31mm wide. Its accurate length is 15.87mm. Whereas its minimum gate threshold voltage includes 3v. The package is a sort of to-247ac. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 20 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. It provides up to 270 mω maximum drain source resistance. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
