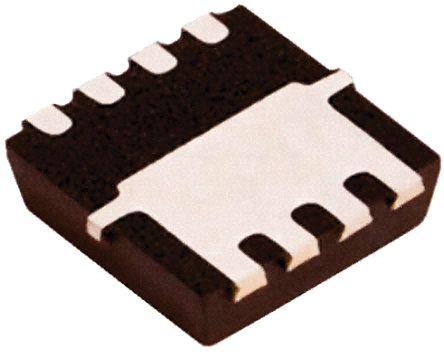

MagnaChip MDV1527URH N-channel MOSFET, 29 A, 30 V, 8-Pin PowerDFN33

MDV1527URH MagnaChip  N-channel MOSFET, 29 A, 30 V, 8-Pin PowerDFN33
MagnaChip

Product Information

Maximum Continuous Drain Current:
29 A
Transistor Material:
Si
Width:
3.2mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2.7V
Package Type:
PowerDFN33
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
7.9 nC @ 10 V
Channel Type:
N
Length:
3.2mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
23.5 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.8mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.1V
Maximum Drain Source Resistance:
23.7 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 29 A 30 V 8-Pin PowerDFN33 manufactured by MagnaChip. The manufacturer part number is MDV1527URH. While 29 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.2mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 2.7v of maximum gate threshold voltage. The package is a sort of powerdfn33. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 7.9 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 3.2mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 23.5 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 0.8mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.1v . It provides up to 23.7 mω maximum drain source resistance.

pdf icon
MDV1527 Single N-channel Trench MOSFET 30V, 20A(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
