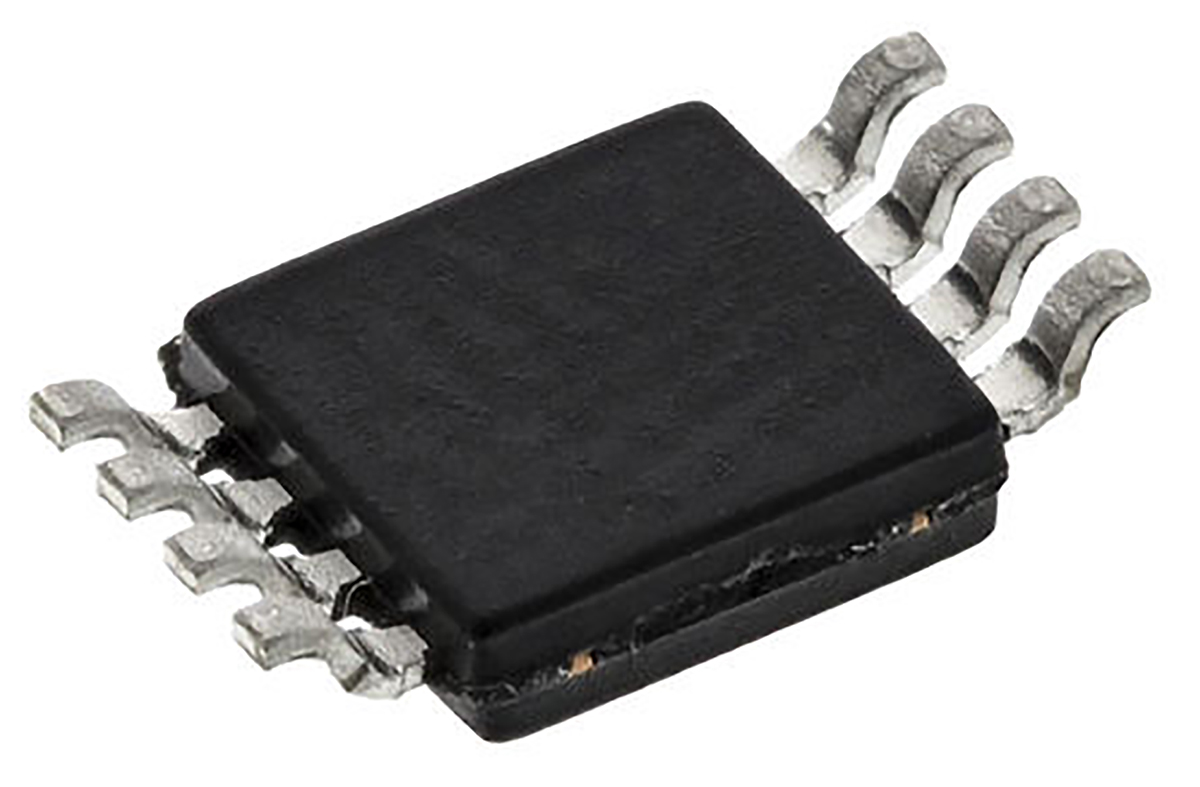

Infineon IRF7509TRPBF Dual N/P-channel MOSFET, 2 A, 2.7 A, 30 V HEXFET, 8-Pin MSOP

IRF7509TRPBF Infineon  Dual N/P-channel MOSFET, 2 A, 2.7 A, 30 V HEXFET, 8-Pin MSOP
IRF7509TRPBF
Infineon

Product Information

Maximum Continuous Drain Current:
2 A, 2.7 A
Transistor Material:
Si
Width:
3mm
Transistor Configuration:
Isolated
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
1V
Package Type:
MSOP
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
7.5 nC @ 10 V, 7.8 nC @ 10 V
Channel Type:
N, P
Length:
3mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.25 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.86mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
110 mΩ, 200 mΩ
RoHs Compliant
Checking for live stock

This is Dual N/P-channel MOSFET 2 A 2.7 A 30 V HEXFET 8-Pin MSOP manufactured by Infineon. The manufacturer part number is IRF7509TRPBF. While 2 a, 2.7 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3mm wide. The product offers isolated transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 1v of maximum gate threshold voltage. The package is a sort of msop. It consists of 2 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 7.5 nc @ 10 v, 7.8 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 3mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 1.25 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 0.86mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 110 mω, 200 mω maximum drain source resistance.

pdf icon
IRF7509 HEXFET® Power MOSFET Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
