Category:
Power MOSFET
Dimensions:
4.95 x 3.95 x 1.5mm
Maximum Continuous Drain Current:
6.9 A
Transistor Material:
Si
Width:
3.95mm
Transistor Configuration:
Isolated
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
1.5V
Maximum Drain Source Resistance:
35 mΩ
Package Type:
SOIC
Number of Elements per Chip:
2
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
18.6 nC @ 8 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1171 pF @ 10 V
Length:
4.95mm
Pin Count:
8
Typical Turn-Off Delay Time:
119.3 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1.4 W
Maximum Gate Source Voltage:
-8 V, +8 V
Height:
1.5mm
Typical Turn-On Delay Time:
16.5 ns
Minimum Operating Temperature:
-55 °C

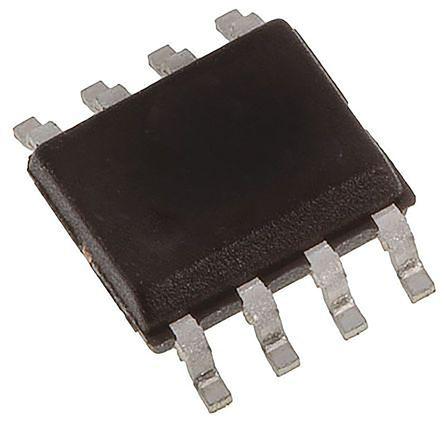

This is Diodes Inc Dual N-channel MOSFET 6.9 A 20 V 8-Pin SOIC manufactured by DiodesZetex. The manufacturer part number is DMN2029USD-13. It is of power mosfet category . The given dimensions of the product include 4.95 x 3.95 x 1.5mm. While 6.9 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.95mm wide. The product offers isolated transistor configuration. It has a maximum of 20 v drain source voltage. The product carries 1.5v of maximum gate threshold voltage. It provides up to 35 mω maximum drain source resistance. The package is a sort of soic. It consists of 2 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 18.6 nc @ 8 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1171 pf @ 10 v . Its accurate length is 4.95mm. It contains 8 pins. Whereas, its typical turn-off delay time is about 119.3 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 1.4 w maximum power dissipation. It features a maximum gate source voltage of -8 v, +8 v. In addition, the height is 1.5mm. In addition, it has a typical 16.5 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c.
