Category:
Power MOSFET
Dimensions:
3.3 x 3.3 x 1mm
Maximum Continuous Drain Current:
42 A
Transistor Material:
Si
Width:
3.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
25 V
Maximum Gate Threshold Voltage:
1.7V
Maximum Drain Source Resistance:
17.3 mΩ

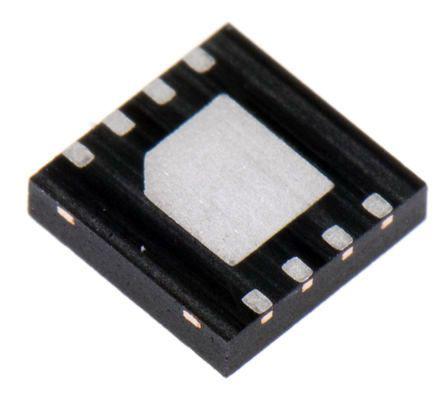

Package Type:
DFN
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
5.5 nC @ 4.5 V
Channel Type:
N
Typical Input Capacitance @ Vds:
400 pF @ 12.5 V
Length:
3.3mm
Pin Count:
8
Typical Turn-Off Delay Time:
4.2 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1.8 W
Series:
MCP87
Maximum Gate Source Voltage:
-8 V, +10 V
Height:
1mm
Typical Turn-On Delay Time:
2.2 ns
Minimum Operating Temperature:
-55 °C
