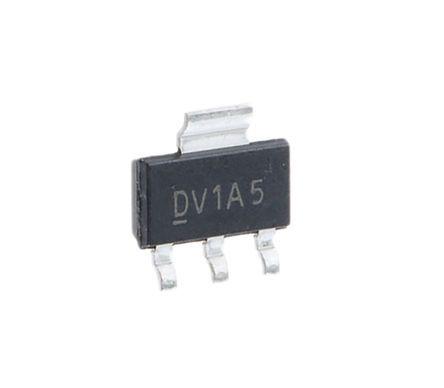

Infineon IRLL2705PBF N-channel MOSFET, 5.2 A, 55 V HEXFET, 3+Tab-Pin SOT-223

IRLL2705PBF Infineon N-channel MOSFET, 5.2 A, 55 V HEXFET, 3+Tab-Pin SOT-223
IRLL2705PBF
Infineon

Product Information

Maximum Continuous Drain Current:
5.2 A
Transistor Material:
Si
Width:
3.7mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
55 V
Maximum Gate Threshold Voltage:
2V
Package Type:
SOT-223
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
32 nC @ 10 V
Channel Type:
N
Length:
6.7mm
Pin Count:
3 + Tab
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2.1 W
Series:
HEXFET
Maximum Gate Source Voltage:
-16 V, +16 V
Height:
1.7mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
40 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 5.2 A 55 V HEXFET 3+Tab-Pin SOT-223 manufactured by Infineon. The manufacturer part number is IRLL2705PBF. While 5.2 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.7mm wide. The product offers single transistor configuration. It has a maximum of 55 v drain source voltage. The product carries 2v of maximum gate threshold voltage. The package is a sort of sot-223. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 32 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 6.7mm. It contains 3 + tab pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 2.1 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -16 v, +16 v. In addition, the height is 1.7mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 40 mω maximum drain source resistance.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
