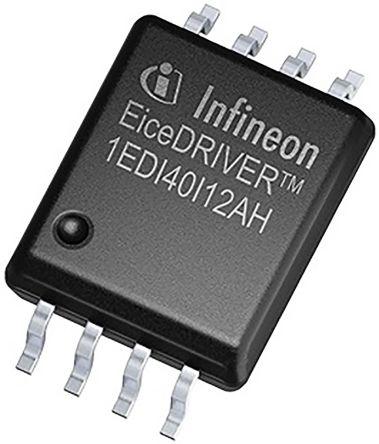

Infineon 1EDI40I12AHXUMA1 Dual Galvanic Isolated Isolated Gate Driver, -6.8 A, 7.5 A, 3.1 → 17 V 8-Pin, DSO

1EDI40I12AHXUMA1 Infineon  Dual Galvanic Isolated Isolated Gate Driver, -6.8 A, 7.5 A, 3.1 → 17 V 8-Pin, DSO
Infineon

Product Information

Polarity:
Inverting, Non-Inverting
Dimensions:
6.4 x 7.6 x 2.45mm
High and Low Sides Dependency:
Independent
Width:
7.6mm
Fall Time:
19ns
Minimum Operating Supply Voltage:
3.1 V
Package Type:
DSO
Maximum Operating Temperature:
+125 °C
Topology:
Galvanic Isolated
Number of Outputs:
2
Time Delay:
330ns
Length:
6.4mm
Input Logic Compatibility:
CMOS
Pin Count:
8
Peak Output Current:
-6.8 A, 7.5 A
Maximum Operating Supply Voltage:
17 V
Mounting Type:
Surface Mount
Number of Drivers:
2
Height:
2.45mm
Minimum Operating Temperature:
-40 °C
Rise Time:
20ns
RoHs Compliant
Checking for live stock

This is Dual Galvanic Isolated Isolated Gate Driver -6.8 A 7.5 A 3.1 → 17 V 8-Pin DSO manufactured by Infineon. The manufacturer part number is 1EDI40I12AHXUMA1. While providing inverting, non-inverting polarity. The given dimensions of the product include 6.4 x 7.6 x 2.45mm. In addition, it has a/an independent high and low sides dependency . Furthermore, the product is 7.6mm wide. Its fall time is about 19ns . While its minimum operating supply voltage is 3.1 v. The package is a sort of dso. It has a maximum operating temperature of +125 °c. Topology includes galvanic isolated. Additionally, the product is supplied with 2 outputs. Additionally, its time delay is about 330ns . Its accurate length is 6.4mm. Moreover, it has a cmos input logic compatibility . It contains 8 pins. It offers a standard -6.8 a, 7.5 a peak output current . It has 17 v maximum operating supply voltage. The product is available in surface mount configuration. Number of Drivers equals 2. In addition, the height is 2.45mm. Whereas, the minimum operating temperature of the product is -40 °c. Whereas, the rise time is 20ns .
