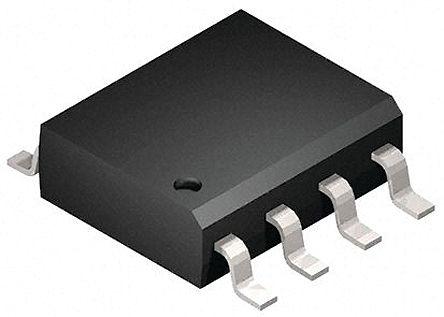

Fairchild Semiconductor FAN7190MX_F085 Dual High and Low Side MOSFET Power Driver, -4.5 A, 4.5 A, 10 → 22 V 8-Pin

Enrgtech Part No: ET13859874
|
Manufacturer Part No:
FAN7190MX_F085
|
Manufacturer: Fairchild Semiconductor

FAN7190MX_F085 Fairchild Semiconductor Dual High and Low Side MOSFET Power Driver, -4.5 A, 4.5 A, 10 → 22 V 8-Pin

Product Information

Polarity:

Non-Inverting

Number of Outputs:

Maximum Operating Supply Voltage:

22 V

Peak Output Current:

-4.5 A, 4.5 A

Dimensions:

4.9 x 3.9 x 1.575mm

Bridge Type:

Half Bridge

Minimum Operating Supply Voltage:

10 V

Number of Drivers:

Height:

1.575mm

Width:

3.9mm

Length:

4.9mm

Package Type:

SOP

Checking for live stock

This is Dual High and Low Side MOSFET Power Driver -4.5 A 4.5 A 10 → 22 V 8-Pin manufactured by Fairchild Semiconductor. The manufacturer part number is FAN7190MX_F085. While providing non-inverting polarity. Additionally, the product is supplied with 2 outputs. It has 22 v maximum operating supply voltage. It offers a standard -4.5 a, 4.5 a peak output current . The given dimensions of the product include 4.9 x 3.9 x 1.575mm. It contains a/an half bridge type bridge . While its minimum operating supply voltage is 10 v. Number of Drivers equals 2. In addition, the height is 1.575mm. Furthermore, the product is 3.9mm wide. Its accurate length is 4.9mm. The package is a sort of sop. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in surface mount configuration. Moreover, it has a cmos, lsttl input logic compatibility . It has a maximum operating temperature of +125 °c. It contains 8 pins. Topology includes high and low side.
