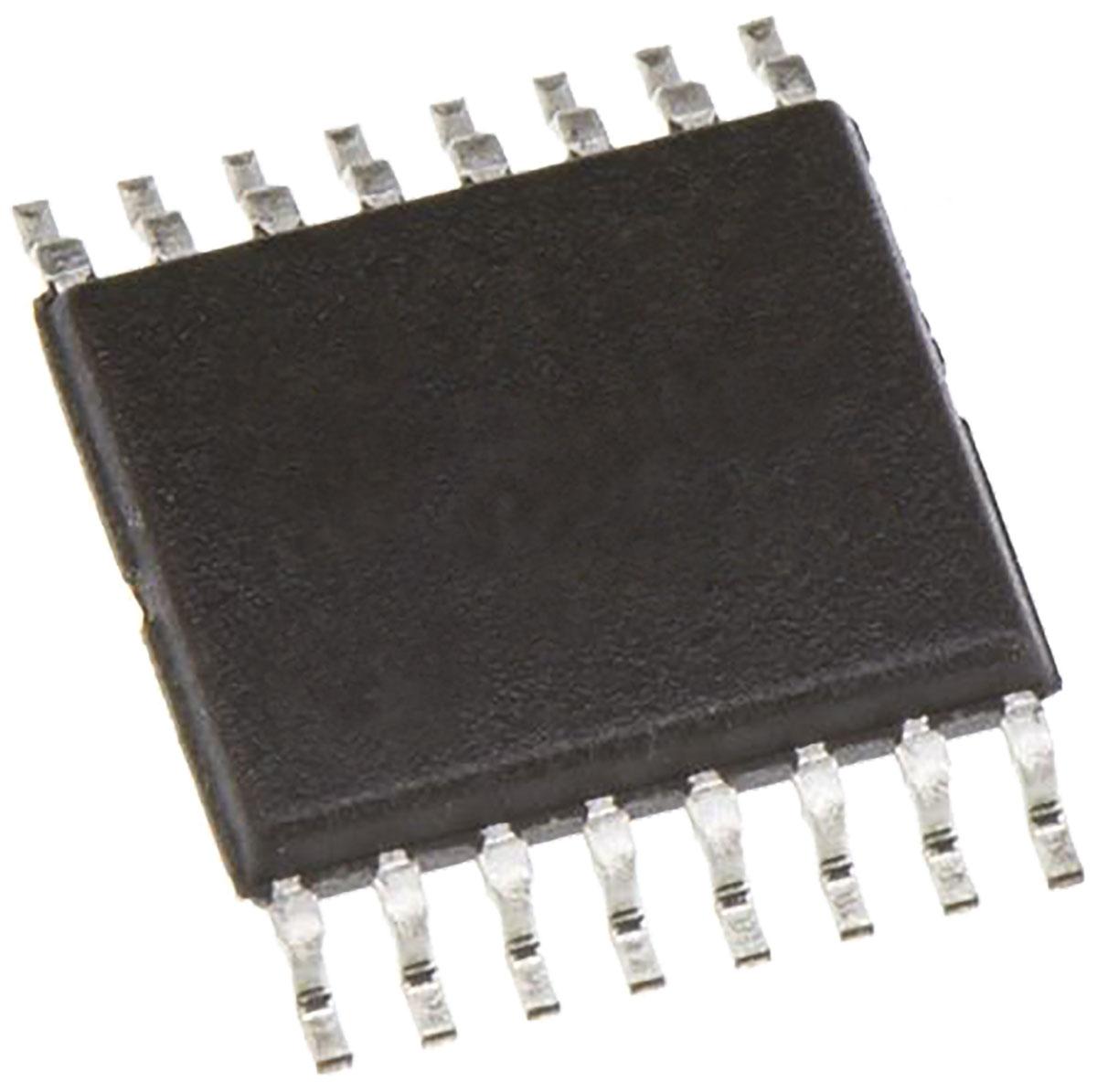

74HCT123PW,112 Monostable Multivibrator

74HCT123PW-112 74HCT123PW,112 Monostable Multivibrator
Nexperia

Product Information

Maximum Low Level Output Current:
4mA
Maximum High Level Output Current:
-4mA
Dimensions:
5.1 x 4.5 x 0.95mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
385 ns @ 50 pF
Minimum Operating Supply Voltage:
4.5 V
Logic Function:
Monostable Multivibrator
Logic Family:
HCT
Height:
0.95mm
Width:
4.5mm
Length:
5.1mm
Package Type:
TSSOP
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Minimum Pulse Width:
150 ns
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+125 °C
Pin Count:
16
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Monostable Multivibrator manufactured by Nexperia. The manufacturer part number is 74HCT123PW,112. On the other hand, it is featured with 4ma of max. low level output current. While a -4ma of maximum high level output current. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The product is available in surface mount configuration. It provides up to 385 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. The primary function of logic includes monostable multivibrator. The logic family is hct. In addition, the height is 0.95mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. The package is a sort of tssop. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It has a minimum 150 ns pulse width . It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +125 °c. It contains 16 pins. Features 50pf of propagation delay test condition.

pdf icon
74HCT123PW Dual Retriggerable Monostable Multivibrator Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
