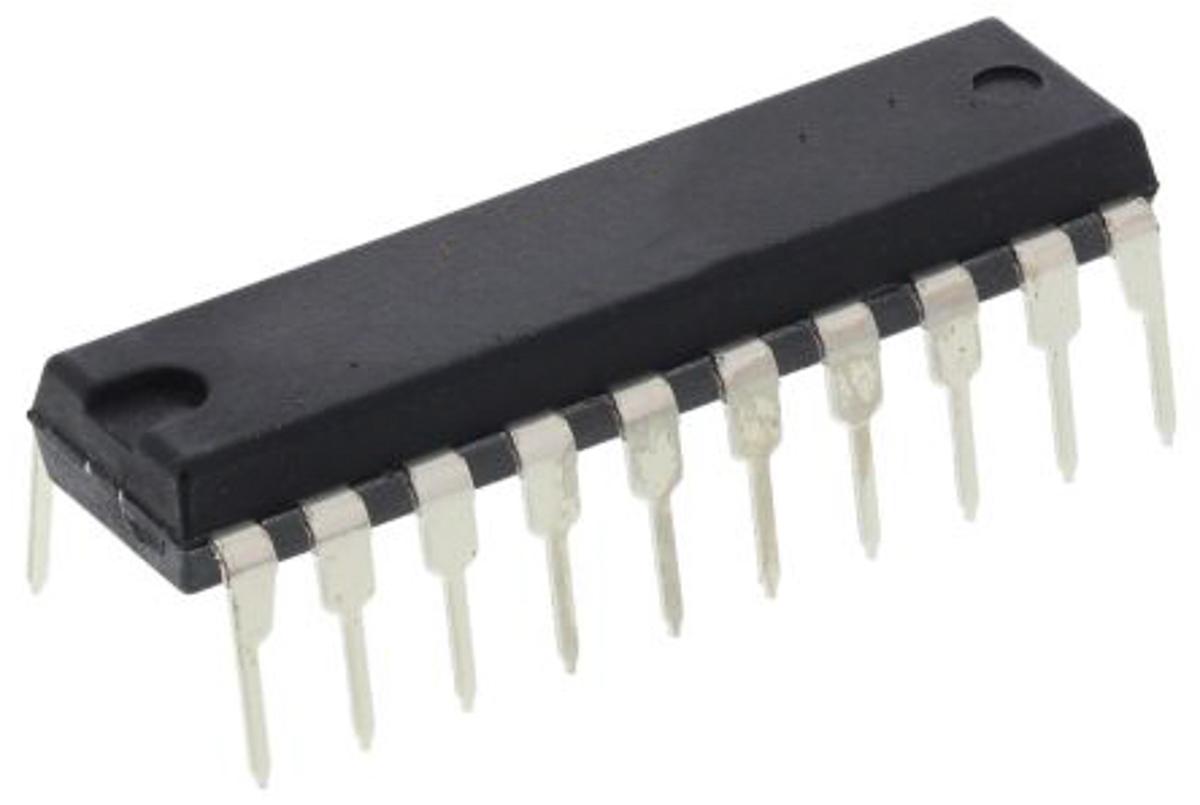

AD630JNZ, Modulator/Demodulator Balanced 20-Pin PDIP

AD630JNZ , Modulator/Demodulator Balanced 20-Pin PDIP
Analog Devices

Product Information

Dimensions:
26.92 x 7.11 x 4.95mm
Mounting Type:
Surface Mount
Device Type:
Modulator/Demodulator
Typical Output Power:
600mW
Minimum Operating Supply Voltage:
-5 V
Maximum Supply Current:
5 mA
Height:
4.95mm
Width:
7.11mm
Length:
26.92mm
Package Type:
PDIP
Minimum Operating Temperature:
+70 °C
Modulation Type:
Balanced
Programmable:
Yes
Maximum I/Q Frequency:
2MHz
Maximum Operating Temperature:
+70 °C
Pin Count:
20
Maximum Operating Supply Voltage:
16.5 V
RoHs Compliant
Checking for live stock

This is Modulator/Demodulator Balanced 20-Pin PDIP manufactured by Analog Devices. The manufacturer part number is AD630JNZ. The given dimensions of the product include 26.92 x 7.11 x 4.95mm. The product is available in surface mount configuration. This modulator/demodulator device is highly durable product with a variety of applications. Its typical output power is about 600mw . While its minimum operating supply voltage is -5 v. Moreover, it has a maximum 5 ma supply current . In addition, the height is 4.95mm. Furthermore, the product is 7.11mm wide. Its accurate length is 26.92mm. The package is a sort of pdip. Whereas, the minimum operating temperature of the product is +70 °c. Additionally, it has balanced type modulation . It is programmable yes . Moreover, it has a maximum I/Q frequency of about 2mhz . It has a maximum operating temperature of +70 °c. It contains 20 pins. It has 16.5 v maximum operating supply voltage.
