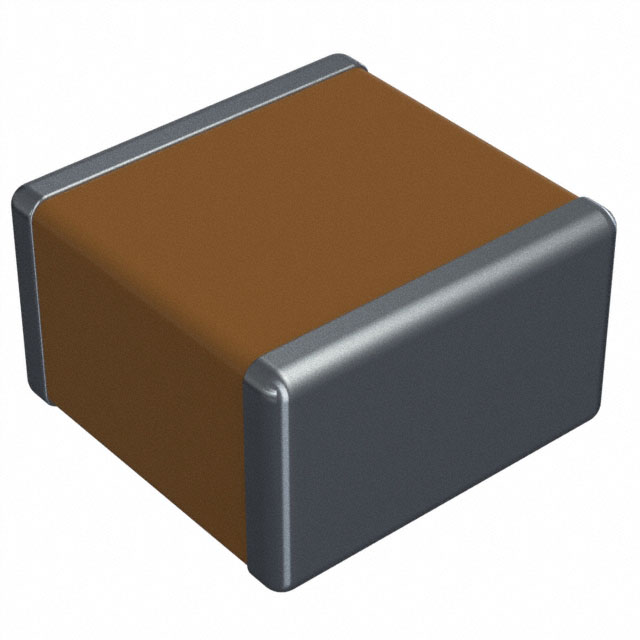

AVX, 2225 (5664M) 330nF Multilayer Ceramic Capacitor MLCC 630V dc ±10% , SMD 2225CC334KAZ2A

2225CC334KAZ2A AVX, 2225 (5664M) 330nF Multilayer Ceramic Capacitor MLCC 630V dc ±10% , SMD
2225CC334KAZ2A
KYOCERA AVX

Product Information

Dimensions:
5.72 x 6.35 x 2.54mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125°C
Length:
5.72mm
Height:
2.54mm
Capacitance:
330nF
Depth:
6.35mm
Voltage:
630V dc
Minimum Operating Temperature:
-55°C
Dielectric:
X7R
Tolerance:
±10%
Terminal Type:
Surface Mount
Package/Case:
2225 (5664M)
Ratings:
-
HTSUS:
8532.24.0020
RoHS Status:
ROHS3 Compliant
Temperature Coefficient:
X7R
Capacitance:
0.33 µF
Operating Temperature:
-55°C ~ 125°C
Package / Case:
2225 (5763 Metric)
Tolerance:
±10%
Voltage - Rated:
630V
Height - Seated (Max):
-
title:
2225CC334KAZ2A
REACH Status:
REACH Unaffected
Applications:
SMPS Filtering, Boardflex Sensitive
Thickness (Max):
0.134" (3.40mm)
Size / Dimension:
0.224" L x 0.248" W (5.70mm x 6.30mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Soft Termination, High Voltage
Mounting Type:
Surface Mount, MLCC
Lead Style:
-
Series:
FLEXITERM®
Packaging:
Tape & Reel (TR)
Lead Spacing:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is AVX 2225 (5664M) 330nF Multilayer Ceramic Capacitor MLCC 630V dc ±10% SMD manufactured by KYOCERA AVX. The manufacturer part number is 2225CC334KAZ2A. The given dimensions of the product include 5.72 x 6.35 x 2.54mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125°c. Its accurate length is 5.72mm. In addition, the height is 2.54mm. It provides a 330nf of capacitance value. The product comes in 6.35mm depth. It carries a 630v dc of voltage. Whereas, the minimum operating temperature of the product is -55°c. The dielectric options include x7r. It features ±10% of tolerance value. The terminal is a surface mount type. Concerning its package and casing, it is 2225 (5664m). It is assigned with possible HTSUS value of 8532.24.0020. The product is rohs3 compliant. It exhibits an excellent temperature coefficient of x7r. It provides a 0.33 µf of capacitance value. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in 2225 (5763 metric). It also exhibits voltage rating of 630v. In addition, it is reach unaffected. The product is widely employed in smps filtering, boardflex sensitive. The product has a maximum thickness of 0.134" (3.40mm). The product's diameters include 0.224" l x 0.248" w (5.70mm x 6.30mm). Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include soft termination, high voltage. The product is available in surface mount, mlcc configuration. The product flexiterm®, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
AVX High Voltage MLC Chips FLEXITERM Datasheet(Technical Reference)
pdf icon
Mult Devs 16/Sep/2020(PCN Obsolescence/ EOL)
pdf icon
KGF Series, FLEXITERM®(Datasheets)
pdf icon
Ceramic Chip Capacitor Catalog(Other Related Documents)
pdf icon
Mult Devs Part Number 27/Mar/2023(PCN Part Number)
