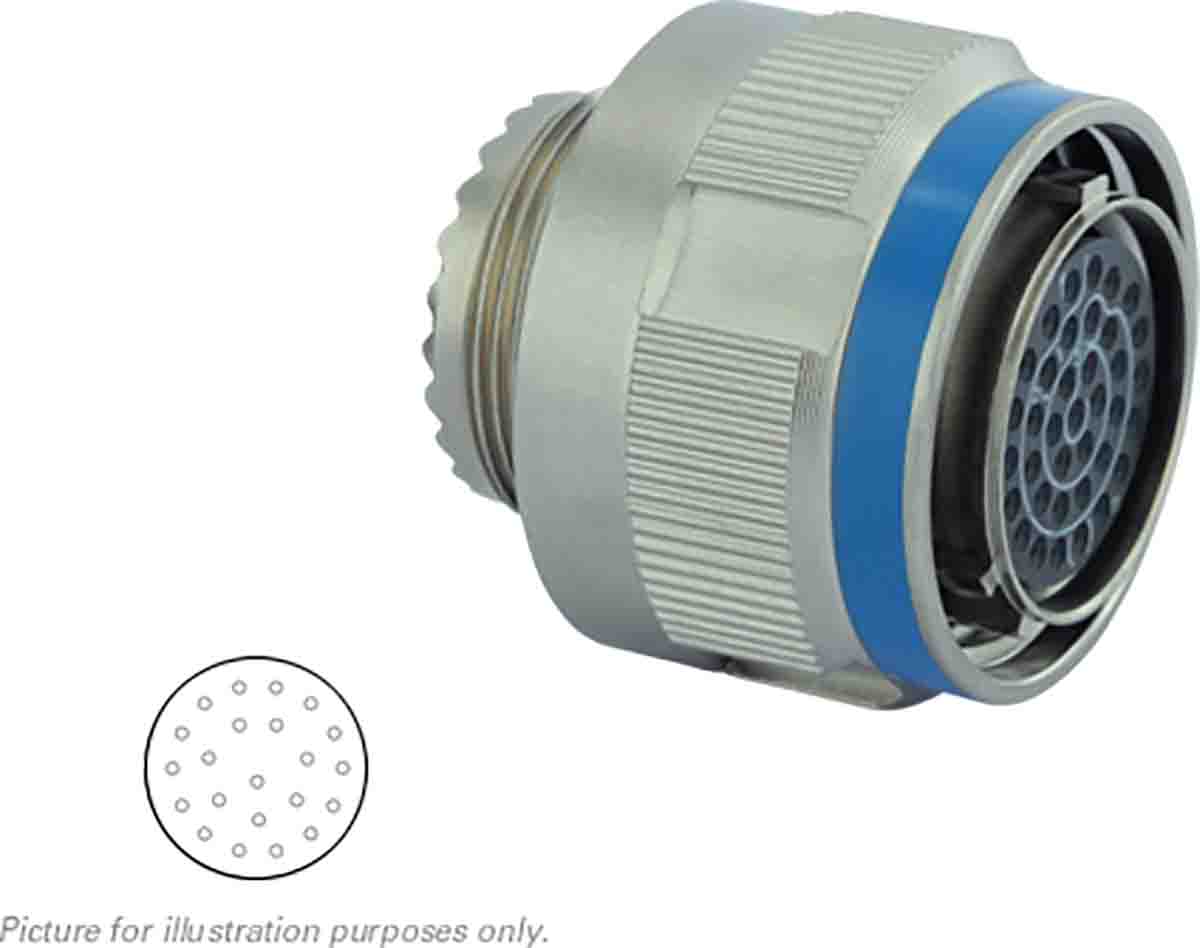

Souriau, 8D 22 Way MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 13, Screw Coupling, MIL-DTL-38999

8D513F35SA Souriau, 8D 22 Way MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 13, Screw Coupling, MIL-DTL-38999
Souriau Sunbank by Eaton

Product Information

Series:
8D
Current Rating:
5A
Mating Type:
Screw Coupling
IP Rating:
IP67
Gender:
Male
Body Orientation:
Straight
Termination Method:
Crimp
Contact Gender:
Female
Military Standard:
MIL-DTL-38999
Housing Material:
Aluminium
Connector Size:
Standard
Contact Plating:
Gold over Nickel
Shell Size:
13
Number of Contacts:
22
Maximum Operating Temperature:
+200°C
Minimum Operating Temperature:
-65°C
Shell Plating:
Nickel
Contact Material:
Copper Alloy
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-65°C ~ 200°C
Shell Size, MIL:
-
Number of Positions:
22
Backshell Material, Plating:
-
Shielding:
Shielded
Cable Opening:
-
Shell Material:
Aluminum
REACH Status:
REACH Unaffected
Current Rating (Amps):
5A
edacadModel:
8D513F35SA Models
Applications:
Aviation, Marine, Military
Contact Finish - Mating:
Gold
Primary Material:
Metal
Material Flammability Rating:
-
edacadModelUrl:
/en/models/7268160
Voltage Rating:
-
Shell Size - Insert:
13-35
Connector Type:
Plug, Female Sockets
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
Threaded
Qualification:
MIL-DTL-38999 Series III
Termination:
Crimp
Insert Material:
Thermoplastic
Orientation:
A
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Silver
Series:
8D
Packaging:
Bulk
Grade:
-
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Alloy
Base Product Number:
8D513F
ECCN:
EAR99
Checking for live stock

This is Souriau 8D 22 Way MIL Spec Circular Connector Plug Socket ContactsShell Size 13 Screw Coupling MIL-DTL-38999 manufactured by Souriau Sunbank by Eaton. The manufacturer part number is 8D513F35SA. The product 8d, is a highly preferred choice for users. The product has a current rating of 5a. It is a type of screw coupling mating. It is IP rated with ip67. In addition, male is the available "Gender" of the product. It has straight body orientation. It allows crimp termination method. This female contact is widely suited for specific applications. It complies with mil-dtl-38999 military standard. The product also features robust aluminium housing material. The connector has standard size. The high-quality gold over nickel is used as contact plating material. The shell has 13 size. The product contains 22 contacts. It has a maximum operating temperature of +200°c. Whereas, the minimum operating temperature of the product is -65°c. The shell is plated with high stable nickel material. The product is made from sturdy copper alloy materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. The product has -65°c ~ 200°c operating temperature range. The product carries possible position value of 22. Furthermore, the product is shielded with shielded. It is made from highly reliable aluminum materials. In addition, it is reach unaffected. Additionally, the product's output is 5a. The product is widely employed in aviation, marine, military. It has nice contact finishing of gold. The basic product material is metal. The insert's size is 13-35. plug, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. Furthermore, threaded is the Fastening Type of the product. The product features crimp termination style. While it is also supplied with highly stable thermoplastic insert material. The product has a a orientation. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include coupling nut. The product is available in free hanging (in-line) configuration. The shell is an excellent finishing of nickel. It has a classic silver colour. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to 8d513f, a base product number of the product. The product is designated with the ear99 code number.
