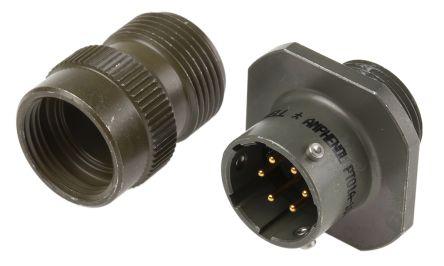

Amphenol PT01A-10-6P, PT Series, 6 Way Cable Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 10, Bayonet

PT01A-10-6P Amphenol , PT Series, 6 Way Cable Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 10, Bayonet
PT01A-10-6P
Amphenol

Product Information

The PT01A-10-6P is a rugged 6-way cable mount circular connector receptacle from Amphenol's PT Series. Built to MIL-spec standards, it delivers robust reliability for secure connections in demanding environments, linking ideally between power and performance.

Series:
PT
Mating Type:
Bayonet
Mounting Type:
Cable Mount
Voltage Rating:
1 kV ac
Minimum Operating Temperature:
-55°C
Gender:
Female
Colour:
Green
Termination Method:
Solder
Contact Gender:
Male
Military Standard:
MIL-DTL-26482
Housing Material:
Aluminium
Connector Size:
Miniature
Contact Plating:
Gold
Shell Size:
10
Number of Contacts:
6
Maximum Operating Temperature:
+125°C
Body Orientation:
Straight
Shell Plating:
Cadmium
Contact Material:
Copper Alloy
Checking for live stock

The Amphenol PT01A-10-6P is a 6-way cable mount MIL Spec circular connector receptacle with pin contacts, shell size 10, and a bayonet locking mechanism. It offers excellent electrical connectivity, a compact yet sturdy design, and versatility for various industries. Whether in military, aerospace, or industrial applications, this connector ensures reliable performance and durability in challenging conditions.

  • Connector Type: Circular Connector Receptacle:

The PT01A-10-6P belongs to the PT series of connectors and specifically features a receptacle configuration. It is designed to receive and connect with a corresponding male connector, forming a secure and reliable connection.

  • Pin Contacts: Ensuring Reliable Electrical Connectivity:

With pin contacts, the PT01A-10-6P ensures excellent electrical connectivity. The pin contacts are designed to establish a reliable interface between the receptacle and the corresponding male connector, allowing the transmission of electrical signals or power with minimal loss or interference.

  • Shell Size 10: Compact and Sturdy Design:

The PT01A-10-6P is classified as a shell-size ten connector. This designation refers to the physical size and dimensions of the connector's housing. Shell size ten connectors are known for their compact yet robust design, making them suitable for applications where space is limited, but durability is crucial.

  • Bayonet Locking Mechanism: Secure and Quick Connection:

The PT01A-10-6P features a bayonet locking mechanism. This mechanism ensures a secure and quick connection between the receptacle and the corresponding male connector. The bayonet lock allows for easy and toolless mating and unmating, saving time and effort during installation or maintenance tasks.

Application Versatility of Amphenol PT01A-10-6P, PT Series, 6 Way Cable Mount MIL Spec Circular Connector in Various Industries:

The Amphenol PT01A-10-6P connector finds applications in various industries, such as military and defence, aerospace, industrial automation, and telecommunications. Its rugged construction, reliable electrical performance, and secure locking mechanism make it suitable for demanding environments where reliable connectivity is essential.

pdf icon
Datasheet(Technical Reference)
pdf icon
PT Series Catalog(Technical Reference)
