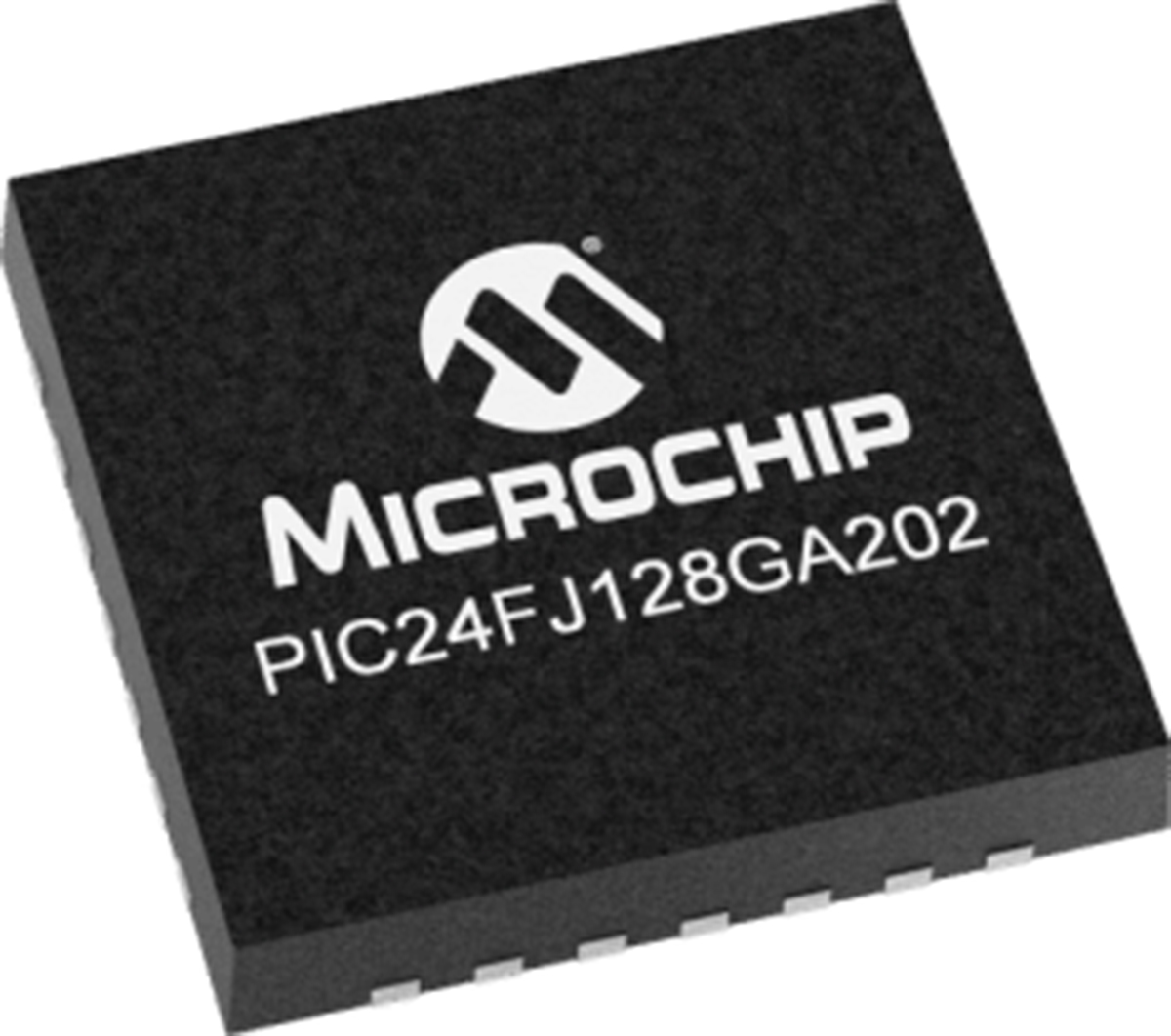

Microchip Technology PIC24FJ128GA202-I/MM, 16bit PIC Microcontroller, 32MHz, 128 kB Flash, 28-Pin QFN

PIC24FJ128GA202-I-MM Microchip Technology PIC24FJ128GA202-I/MM, 16bit PIC Microcontroller, 32MHz, 128 kB Flash, 28-Pin QFN
Microchip

Product Information

Dimensions:
6 x 6 x 0.95mm
Number of I2C Channels:
2
Number of USART Channels:
0
USB Channels:
0
Width:
6mm
Program Memory Size:
128 kB
Number of PWM Units:
1 x 16 bit
RAM Size:
8 kB
Data Bus Width:
16bit
Instruction Set Architecture:
Modified Harvard
Program Memory Type:
Flash
Package Type:
QFN
Maximum Frequency:
32MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
4
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC24FJ
Device Core:
PIC
Length:
6mm
Number of ADC Units:
1
Pin Count:
28
Pulse Width Modulation:
1 (6 x 16 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
0.95mm
Typical Operating Supply Voltage:
3.6 (Maximum) V
ADCs:
10 x 12 bit
Number of CAN Channels:
0
Number of SPI Channels:
3
RoHs Compliant
Checking for live stock

This is Technology 16bit PIC Microcontroller 32MHz 128 kB Flash 28-Pin QFN manufactured by Microchip. The manufacturer part number is PIC24FJ128GA202-I/MM. The given dimensions of the product include 6 x 6 x 0.95mm. Moreover, it comprises 2 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 6mm wide. In addition, 128 kb is the program memory size. Furthermore, it is composed of 1 x 16 bit PWM units. The product has typical 8 kb RAM size. Moreover, the data bus width includes 16bit. The instruction set has modified harvard architecture. It is a flash program memory type. The package is a sort of qfn. It features 32mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 4 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic24fj. On the other hand, the pic is the device core. Its accurate length is 6mm. It contains 1 ADC units. It contains 28 pins. The product carries 1 (6 x 16 bit) of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 0.95mm. It has 3.6 (maximum) v of typical operating supply voltage. The ADCs included 10 x 12 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 3 SPI channels.
