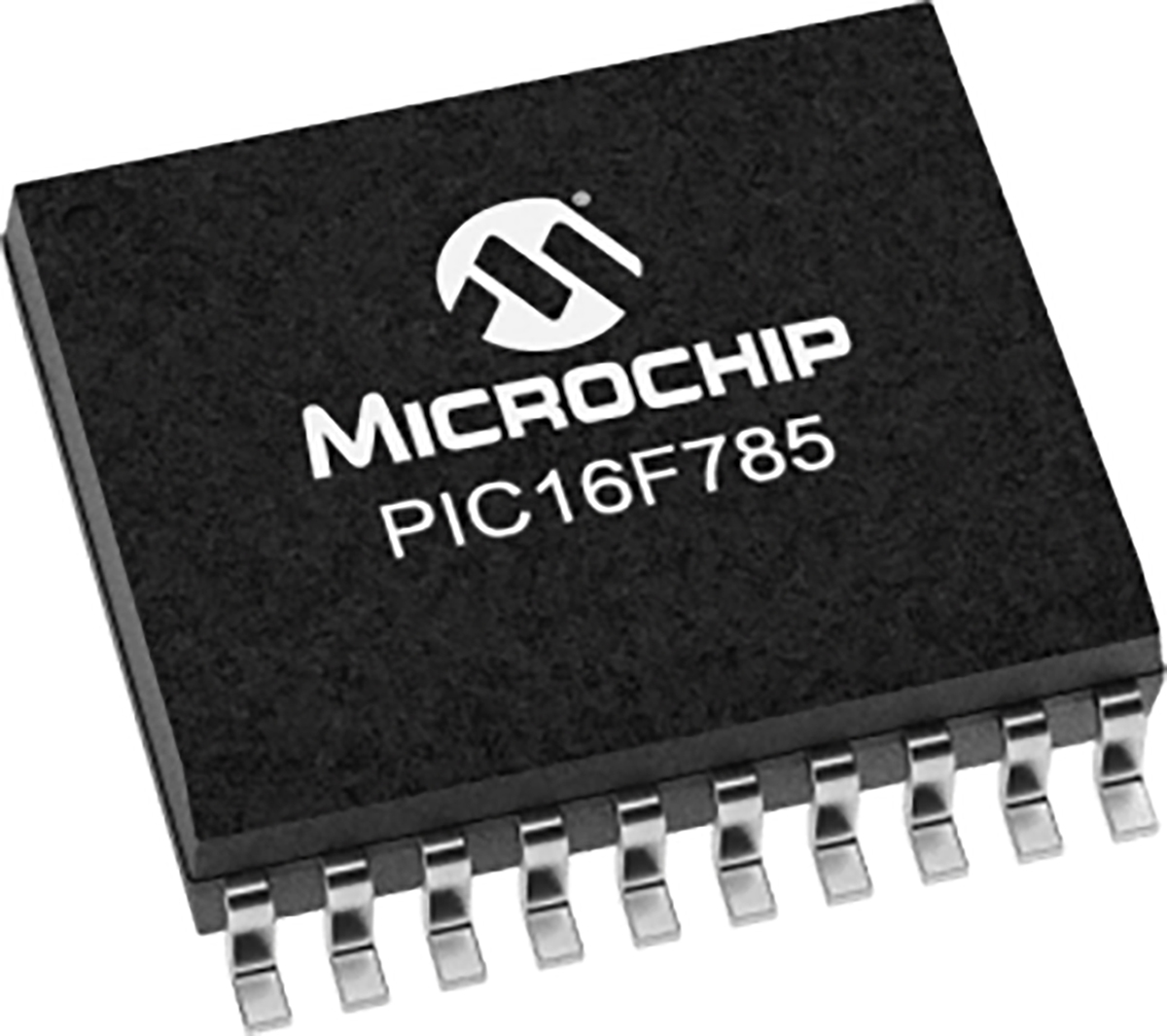

Microchip Technology PIC16F785-I/SS, 8bit PIC Microcontroller, 20MHz, 3.5 kB Flash, 20-Pin SSOP

PIC16F785-I-SS Microchip Technology PIC16F785-I/SS, 8bit PIC Microcontroller, 20MHz, 3.5 kB Flash, 20-Pin SSOP
Microchip

Product Information

Dimensions:
7.5 x 5.6 x 1.85mm
Number of I2C Channels:
0
Number of USART Channels:
0
USB Channels:
0
Width:
5.6mm
Program Memory Size:
3.5 kB
Number of PWM Units:
1 x 10 bit
RAM Size:
128 B
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
SSOP
Maximum Frequency:
20MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC16F
Device Core:
PIC
Length:
7.5mm
Number of ADC Units:
1
Pin Count:
20
Pulse Width Modulation:
1 (1 x 10 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.85mm
Typical Operating Supply Voltage:
5.5 (Maximum) V
ADCs:
14 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
0
RoHs Compliant
Checking for live stock

This is Technology 8bit PIC Microcontroller 20MHz 3.5 kB Flash 20-Pin SSOP manufactured by Microchip. The manufacturer part number is PIC16F785-I/SS. The given dimensions of the product include 7.5 x 5.6 x 1.85mm. Moreover, it comprises 0 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 5.6mm wide. In addition, 3.5 kb is the program memory size. Furthermore, it is composed of 1 x 10 bit PWM units. The product has typical 128 b RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of ssop. It features 20mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic16f. On the other hand, the pic is the device core. Its accurate length is 7.5mm. It contains 1 ADC units. It contains 20 pins. The product carries 1 (1 x 10 bit) of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.85mm. It has 5.5 (maximum) v of typical operating supply voltage. The ADCs included 14 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 0 SPI channels.
