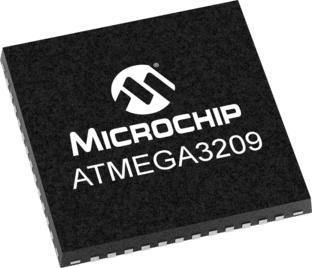

Microchip ATmega3209-MFR, 8bit Microcontroller, 20MHz, 32 kB Flash, 48-Pin QFN

ATmega3209-MFR Microchip , 8bit Microcontroller, 20MHz, 32 kB Flash, 48-Pin QFN
Microchip

Product Information

Dimensions:
6 x 6 x 0.5mm
Number of I2C Channels:
1
Program Memory Size:
32 kB
Width:
6mm
Number of USART Channels:
1
Number of PWM Units:
1
RAM Size:
4.096 kB
Data Bus Width:
8bit
Program Memory Type:
Flash
Package Type:
QFN
Maximum Frequency:
20MHz
Maximum Operating Temperature:
+125 °C
Number of UART Channels:
4
Family Name:
ATmega
Length:
6mm
Number of ADC Units:
1
Pin Count:
48
Mounting Type:
Surface Mount
Height:
0.5mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
16 x 10 bit
Minimum Operating Temperature:
-40 °C
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit Microcontroller 20MHz 32 kB Flash 48-Pin QFN manufactured by Microchip. The manufacturer part number is ATmega3209-MFR. The given dimensions of the product include 6 x 6 x 0.5mm. Moreover, it comprises 1 I2C channels. In addition, 32 kb is the program memory size. Furthermore, the product is 6mm wide. It contains 1 USART channels. Furthermore, it is composed of 1 PWM units. The product has typical 4.096 kb RAM size. Moreover, the data bus width includes 8bit. It is a flash program memory type. The package is a sort of qfn. It features 20mhz of maximum frequency. It has a maximum operating temperature of +125 °c. It is also composed of 4 UART channels. The product belongs to a family atmega. Its accurate length is 6mm. It contains 1 ADC units. It contains 48 pins. The product is available in surface mount configuration. In addition, the height is 0.5mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 16 x 10 bit. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it is composed of 1 SPI channels.
