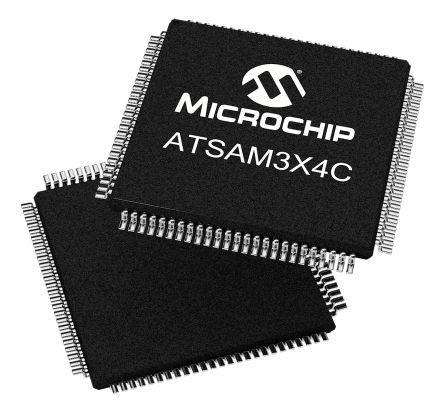

Microchip Technology ATSAM3X4CA-AU, 32bit ARM Cortex M3 Microcontroller, 84MHz, 256 kB Flash, 100-Pin LQFP

ATSAM3X4CA-AU Microchip Technology , 32bit ARM Cortex M3 Microcontroller, 84MHz, 256 kB Flash, 100-Pin LQFP
Microchip

Product Information

Dimensions:
14 x 14 x 1.45mm
USB Channels:
1
Width:
14mm
Program Memory Size:
256 kB
Number of PWM Units:
1
RAM Size:
64 kB
ADC Channels:
16
Number of Timers:
1
Data Bus Width:
32bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
84MHz
Maximum Operating Temperature:
+85 °C
PWM Resolution:
16bit
Family Name:
SAM3X
Device Core:
ARM Cortex M3
ADC Resolution:
12bit
Timer Resolution:
32bit
Number of ADC Units:
1
Pin Count:
100
Pulse Width Modulation:
1 (8 x 16 bit)
Mounting Type:
Surface Mount
PWM Channels:
8
Length:
14mm
Height:
1.45mm
Typical Operating Supply Voltage:
1.8 V, 3.3 V
ADCs:
1(16 x 12 bit)
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is Technology 32bit ARM Cortex M3 Microcontroller 84MHz 256 kB Flash 100-Pin LQFP manufactured by Microchip. The manufacturer part number is ATSAM3X4CA-AU. The given dimensions of the product include 14 x 14 x 1.45mm. The product integrates 1 USB channels. Furthermore, the product is 14mm wide. In addition, 256 kb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 64 kb RAM size. Additionally, it is composed of 16 ADC channels. It comprises 1 timers. Moreover, the data bus width includes 32bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of lqfp. It features 84mhz of maximum frequency. It has a maximum operating temperature of +85 °c. Moreover, the product is created with 16bit PMW resolution . The product belongs to a family sam3x. On the other hand, the arm cortex m3 is the device core. The ADC has 12bit resolution. The timer has 32bit resolution. It contains 1 ADC units. It contains 100 pins. The product carries 1 (8 x 16 bit) of pulse width modulation. The product is available in surface mount configuration. It includes 8 PWM channels . Its accurate length is 14mm. In addition, the height is 1.45mm. It has 1.8 v, 3.3 v of typical operating supply voltage. The ADCs included 1(16 x 12 bit). Whereas, the minimum operating temperature of the product is -40 °c.
