Dimensions:
20 x 20 x 1.45mm
Number of I2C Channels:
2
Number of USART Channels:
2
USB Channels:
1
Width:
20mm
Program Memory Size:
1.024 MB
Number of PWM Units:
1
RAM Size:
128 kB
ADC Channels:
24
Number of Timers:
1
Data Bus Width:
32bit
Instruction Set Architecture:
Harvard
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
120MHz
Data Rate:
400kbit/s
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
PWM Resolution:
16bit
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
1
Family Name:
ATSAM
ADC Resolution:
16bit
Timer Resolution:
16bit
Timers:
1 (9 x 16 bit)
Number of ADC Units:
1
Pin Count:
144
Pulse Width Modulation:
1 (4 x 16 bit)
Mounting Type:
Surface Mount
PWM Channels:
4
Length:
20mm
Number of Ethernet Channels:
1
Height:
1.45mm
Typical Operating Supply Voltage:
3.6 (Maximum) V
ADCs:
1 (24 x 16 bit)
Number of CAN Channels:
2
Number of SPI Channels:
3
HTSUS:
8542.31.0025
RoHS Status:
ROHS3 Compliant
Program Memory Size:
1MB (1M x 8)
Peripherals:
Brown-out Detect/Reset, DMA, POR, PWM, WDT
Operating Temperature:
-40°C ~ 85°C (TA)
Voltage - Supply (Vcc/Vdd):
1.62V ~ 3.6V

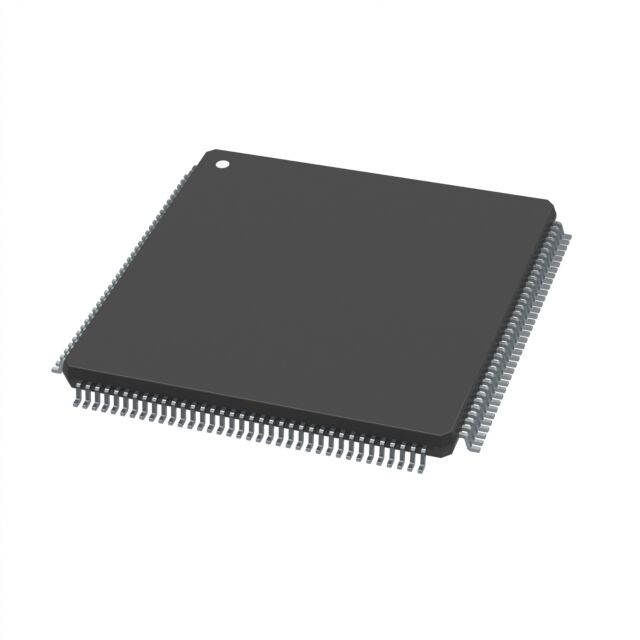

Package / Case:
144-LQFP
RAM Size:
128K x 8
Data Converters:
A/D 16x12b; D/A 2x12b
title:
ATSAM4E16EA-AU
Program Memory Type:
FLASH
REACH Status:
REACH Unaffected
edacadModel:
ATSAM4E16EA-AU Models
Connectivity:
CANbus, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB
edacadModelUrl:
/en/models/4119512
EEPROM Size:
-
Oscillator Type:
Internal
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Number of I/O:
117
standardLeadTime:
4 Weeks
DigiKey Programmable:
Not Verified
Core Size:
32-Bit Single-Core
Mounting Type:
Surface Mount
Series:
SAM4E
Supplier Device Package:
144-LQFP (20x20)
Packaging:
Tray
Core Processor:
ARM® Cortex®-M4
Speed:
120MHz
Base Product Number:
ATSAM4E
ECCN:
5A992C
