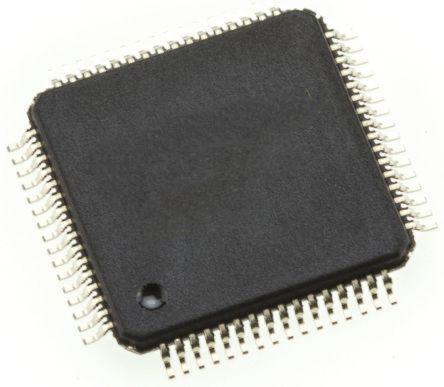

Cypress Semiconductor Microcontroller, 32bit ARM Cortex M0, 48MHz, 128 kB Flash TQFP, 64-Pin CY8C4147AXI-S465

CY8C4147AXI-S465 Cypress Semiconductor Microcontroller, 32bit ARM Cortex M0, 48MHz, 128 kB Flash TQFP, 64-Pin
Cypress Semiconductor

Product Information

Dimensions:
14.05 x 14.05 x 1.45mm
Number of I2C Channels:
5
Number of USART Channels:
0
USB Channels:
0
Width:
14.05mm
Program Memory Size:
128 kB
Number of PWM Units:
1 x 16 bit
RAM Size:
16 kB
Number of Timers:
1
Data Bus Width:
32bit
Instruction Set Architecture:
Thumb-2
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
48MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
5
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
CY8C4100
Device Core:
ARM Cortex M0
Length:
14.05mm
Timer Resolution:
16bit
Timers:
1 (8 x 16 bit)
Number of ADC Units:
1
Pin Count:
64
Pulse Width Modulation:
1 (8 x 16 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.45mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
2 x 10/12 bit
Number of CAN Channels:
1
Number of SPI Channels:
5
RoHs Compliant
Checking for live stock

This is Microcontroller 32bit ARM Cortex M0 48MHz 128 kB Flash TQFP 64-Pin manufactured by Cypress Semiconductor. The manufacturer part number is CY8C4147AXI-S465. The given dimensions of the product include 14.05 x 14.05 x 1.45mm. Moreover, it comprises 5 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 14.05mm wide. In addition, 128 kb is the program memory size. Furthermore, it is composed of 1 x 16 bit PWM units. The product has typical 16 kb RAM size. It comprises 1 timers. Moreover, the data bus width includes 32bit. The instruction set has thumb-2 architecture. It is a flash program memory type. The package is a sort of tqfp. It features 48mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 5 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family cy8c4100. On the other hand, the arm cortex m0 is the device core. Its accurate length is 14.05mm. The timer has 16bit resolution. Timers options include 1 (8 x 16 bit). It contains 1 ADC units. It contains 64 pins. The product carries 1 (8 x 16 bit) of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.45mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 2 x 10/12 bit. Moreover, it consists of 1 CAN channels. Furthermore, it is composed of 5 SPI channels.
