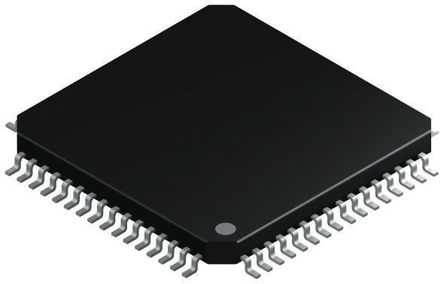

Microchip DSPIC33FJ128MC506A-I/PT, 16bit dsPIC Microcontroller, 40MIPS, 128 kB Flash, 64-Pin TQFP

DSPIC33FJ128MC506A-I-PT Microchip DSPIC33FJ128MC506A-I/PT, 16bit dsPIC Microcontroller, 40MIPS, 128 kB Flash, 64-Pin TQFP
Microchip

Product Information

Dimensions:
10 x 10 x 1.05mm
Number of I2C Channels:
2
Number of USART Channels:
0
USB Channels:
0
Width:
10mm
Program Memory Size:
128 kB
Number of PWM Units:
9 x 16 bit
RAM Size:
8 kB
Data Bus Width:
16bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
40MIPS
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
dsPIC33F
Device Core:
dsPIC
Length:
10mm
Number of ADC Units:
1
Pin Count:
64
Pulse Width Modulation:
8 x 16 bit, 8 (16 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.05mm
Typical Operating Supply Voltage:
3 → 3.6 V
ADCs:
16 x 10/12 bit
Number of CAN Channels:
1
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

The Microchip DSPIC33FJ128MC506A-I/PT represents a significant leap in the field of microcontroller technology. It is a 16-bit Digital Signal Controller (DSC) that blends the functionality of a microcontroller (MCU) with the computational prowess of a Digital Signal Processor (DSP). This hybrid nature makes it a versatile and powerful component in various electronic applications.

Defining Features and Benefits of the Microcontroller

  • The DSPIC33FJ128MC506A-I/PT features an advanced DSP engine, enabling accelerated mathematical computations.
  • With a range of communication peripherals like UART, SPI, and I2C, this DSC offers versatile connectivity options for various applications.
  • The inclusion of high-resolution Analogue-to-Digital Converters (ADCs) and Digital-to-Analogue Converters (DACs) enhances its capability to handle analogue signals.
  • Its low power consumption makes it suitable for battery-operated devices, ensuring longer operational life and sustainability.

The Microchip DSPIC33FJ128MC506A-I/PT, 16bit dsPIC Microcontroller, 40MIPS, 128 kB Flash, 64-Pin TQFP: Use Cases

The Microchip DSPIC33FJ128MC506A-I/PT is a multifaceted microcontroller that finds its utility in a wide array of applications, including:

  • Industrial Automation: In the realm of automation, it serves as a reliable processor for controlling machinery and processes.
  • Automotive Systems: The DSC's robust performance and communication features make it suitable for automotive applications like engine control units.
  • Audio Processing: Its DSP capabilities are ideal for advanced audio applications, including sound synthesis and noise cancellation.
  • Medical Devices: The DSPIC33FJ128MC506A-I/PT is also utilised in medical devices for signal processing and control functions, where precision and reliability are paramount.

Technical Specifications of the 16bit Microcontroller

  • Core Performance: The DSC operates at a speed of 40 MIPS (Million Instructions Per Second), providing a robust platform for high-speed computing tasks.
  • Memory Capacity: It boasts a substantial 128 kB of Flash memory, facilitating extensive program storage and efficient data management.
  • Pin Configuration: The device comes in a 64-pin TQFP (Thin Quad Flat Package) format, which is conducive to compact and efficient board designs.
