Microchip Technology ATTINY45-15MZ

ATTINY45-15MZ Microchip Technology
Microchip Technology

Product Information

HTSUS:
8542.31.0015
RoHS Status:
ROHS3 Compliant
Program Memory Size:
4KB (2K x 16)
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Operating Temperature:
-40°C ~ 125°C (TA)
Voltage - Supply (Vcc/Vdd):
2.7V ~ 5.5V

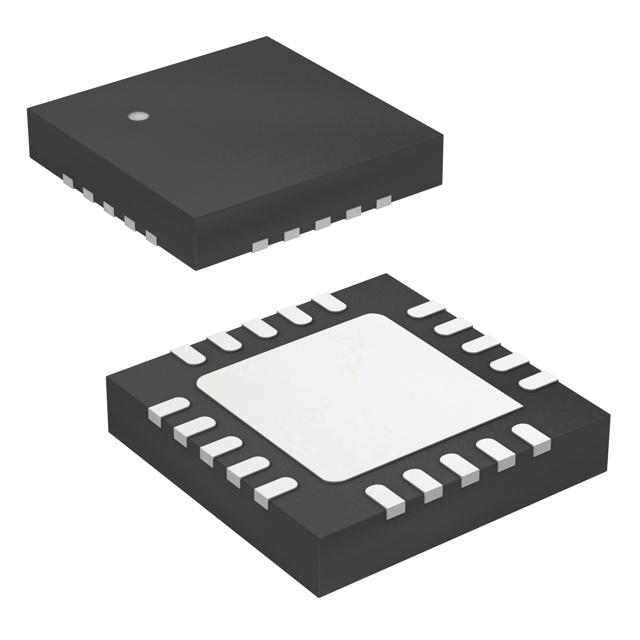

Package / Case:
20-WFQFN Exposed Pad
RAM Size:
256 x 8
Data Converters:
A/D 4x10b
title:
ATTINY45-15MZ
Program Memory Type:
FLASH
REACH Status:
REACH Unaffected
edacadModel:
ATTINY45-15MZ Models
Connectivity:
USI
edacadModelUrl:
/en/models/1914714
EEPROM Size:
256 x 8
Oscillator Type:
Internal
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Qualification:
AEC-Q100
Number of I/O:
6
DigiKey Programmable:
Verified
Core Size:
8-Bit
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
AVR® ATtiny, Functional Safety (FuSa)
Supplier Device Package:
20-WQFN (4x4)
Packaging:
Tape & Reel (TR)
Core Processor:
AVR
Speed:
16MHz
Base Product Number:
ATTINY45
ECCN:
EAR99
Checking for live stock

This is manufactured by Microchip Technology. The manufacturer part number is ATTINY45-15MZ. It is assigned with possible HTSUS value of 8542.31.0015. The product is rohs3 compliant. In addition, 4kb (2k x 16) is the program memory size. It has supplied with other peripherals, such as brown-out detect/reset, por, pwm, wdt. The product has -40°c ~ 125°c (ta) operating temperature range. The supply voltage of a bespoke product includes 2.7v ~ 5.5v. Moreover, the product comes in 20-wfqfn exposed pad. The product has typical 256 x 8 RAM size. The typical data converters include a/d 4x10b. It is a flash program memory type. In addition, it is reach unaffected. It provides connectivity solutions through usi. Furthermore, 256 x 8 is the typical EEPROM size of the product. The product is a internal type of oscillator. Its typical moisture sensitivity level is 3 (168 hours). 6 is the I/O value of the product. It has a core size 8-bit. The product is available in surface mount configuration. The product is automotive, a grade of class. The product avr® attiny, functional safety (fusa), is a highly preferred choice for users. 20-wqfn (4x4) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. avr is the product's core processor. It has a robust speed of 16mhz. Moreover, it corresponds to attiny45, a base product number of the product. The product is designated with the ear99 code number.
