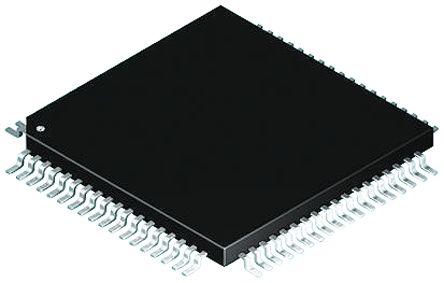

Microchip PIC18F86K22-I/PTRSL, 8bit PIC Microcontroller, 64MHz, 64 kB Flash, 80-Pin TQFP

PIC18F86K22-I-PTRSL Microchip PIC18F86K22-I/PTRSL, 8bit PIC Microcontroller, 64MHz, 64 kB Flash, 80-Pin TQFP
Microchip

Product Information

Dimensions:
12 x 12 x 1.05mm
Number of I2C Channels:
2
Number of USART Channels:
2
USB Channels:
0
Width:
12mm
Program Memory Size:
64 kB
Number of PWM Units:
10
RAM Size:
4 kB
ADC Channels:
24
Number of Timers:
11
Data Bus Width:
8bit
Instruction Set Architecture:
Harvard
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
64MHz
Number of PCI Channels:
0
Number of LIN Channels:
2
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
PWM Resolution:
10bit
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC18F
Device Core:
PIC
ADC Resolution:
12bit
Timer Resolution:
8 bit, 16bit
Timers:
5 x 16 bit, 6 x 8 bit
Number of ADC Units:
1
Pin Count:
80
Pulse Width Modulation:
10 x 10 bit
Mounting Type:
Surface Mount
Length:
12mm
Number of Ethernet Channels:
0
Height:
1.05mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
1(24 x 12 bit)
Number of CAN Channels:
0
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 64MHz 64 kB Flash 80-Pin TQFP manufactured by Microchip. The manufacturer part number is PIC18F86K22-I/PTRSL. The given dimensions of the product include 12 x 12 x 1.05mm. Moreover, it comprises 2 I2C channels. It contains 2 USART channels. The product integrates 0 USB channels. Furthermore, the product is 12mm wide. In addition, 64 kb is the program memory size. Furthermore, it is composed of 10 PWM units. The product has typical 4 kb RAM size. Additionally, it is composed of 24 ADC channels. It comprises 11 timers. Moreover, the data bus width includes 8bit. The instruction set has harvard architecture. It is a flash program memory type. The package is a sort of tqfp. It features 64mhz of maximum frequency. It contains 0 PCI channel . It includes 2 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Moreover, the product is created with 10bit PMW resolution . Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic18f. On the other hand, the pic is the device core. The ADC has 12bit resolution. The timer has 8 bit, 16bit resolution. Timers options include 5 x 16 bit, 6 x 8 bit. It contains 1 ADC units. It contains 80 pins. The product carries 10 x 10 bit of pulse width modulation. The product is available in surface mount configuration. Its accurate length is 12mm. It contains 0 dedicated ethernet channels . In addition, the height is 1.05mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 1(24 x 12 bit). Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 2 SPI channels.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
