Microchip PIC24HJ128GP506A-I/PT, 16bit PIC Microcontroller, 40MIPS, 128 kB Flash, 64-Pin TQFP

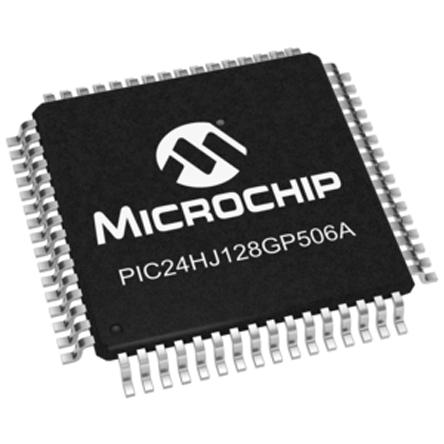

PIC24HJ128GP506A-I-PT Microchip PIC24HJ128GP506A-I/PT, 16bit PIC Microcontroller, 40MIPS, 128 kB Flash, 64-Pin TQFP
Microchip

Product Information

Dimensions:
10 x 10 x 1.05mm
Number of I2C Channels:
2
Number of USART Channels:
0
USB Channels:
0
Width:
10mm
Program Memory Size:
128 kB
Number of PWM Units:
1 x 16 bit
RAM Size:
8 kB
Data Bus Width:
16bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
40MIPS
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Family Name:
PIC24HJ
Device Core:
PIC
Length:
10mm
Number of ADC Units:
1
Pin Count:
64
Pulse Width Modulation:
8 x 16 bit
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.05mm
Typical Operating Supply Voltage:
3 → 3.6 V
ADCs:
18 x 10/12 bit
Number of CAN Channels:
1
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is 16bit PIC Microcontroller 40MIPS 128 kB Flash 64-Pin TQFP manufactured by Microchip. The manufacturer part number is PIC24HJ128GP506A-I/PT. The given dimensions of the product include 10 x 10 x 1.05mm. Moreover, it comprises 2 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 10mm wide. In addition, 128 kb is the program memory size. Furthermore, it is composed of 1 x 16 bit PWM units. The product has typical 8 kb RAM size. Moreover, the data bus width includes 16bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of tqfp. It features 40mips of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. The product belongs to a family pic24hj. On the other hand, the pic is the device core. Its accurate length is 10mm. It contains 1 ADC units. It contains 64 pins. The product carries 8 x 16 bit of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.05mm. It has 3 → 3.6 v of typical operating supply voltage. The ADCs included 18 x 10/12 bit. Moreover, it consists of 1 CAN channels. Furthermore, it is composed of 2 SPI channels.
