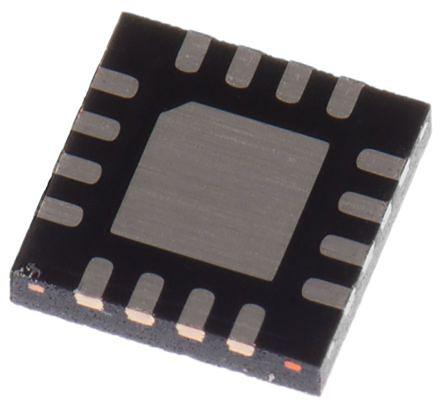

Microchip PIC16LF1554-I/ML, 8bit PIC16LF Microcontroller, 32MHz, 4096 words Flash, 16-Pin QFN

PIC16LF1554-I-ML Microchip PIC16LF1554-I/ML, 8bit PIC16LF Microcontroller, 32MHz, 4096 words Flash, 16-Pin QFN
PIC16LF1554-I/ML
Microchip

Product Information

Dimensions:
4 x 4 x 0.95mm
Number of I2C Channels:
1
Number of USART Channels:
1
Width:
4mm
Program Memory Size:
4096 words
RAM Size:
256 B
ADC Channels:
11
Number of Timers:
3
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
QFN
Maximum Frequency:
32MHz
Maximum Operating Temperature:
+85 °C
Family Name:
PIC16F
Device Core:
PIC16LF
ADC Resolution:
10bit
Timer Resolution:
8 bit, 16 bit
Timers:
1 x 16 bit, 2 x 8 bit
Number of ADC Units:
1
Pin Count:
16
Mounting Type:
Surface Mount
Length:
4mm
Height:
0.95mm
Typical Operating Supply Voltage:
1.8 → 3.6 V
ADCs:
1 (11 x 10 bit)
Minimum Operating Temperature:
-40 °C
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC16LF Microcontroller 32MHz 4096 words Flash 16-Pin QFN manufactured by Microchip. The manufacturer part number is PIC16LF1554-I/ML. The given dimensions of the product include 4 x 4 x 0.95mm. Moreover, it comprises 1 I2C channels. It contains 1 USART channels. Furthermore, the product is 4mm wide. In addition, 4096 words is the program memory size. The product has typical 256 b RAM size. Additionally, it is composed of 11 ADC channels. It comprises 3 timers. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of qfn. It features 32mhz of maximum frequency. It has a maximum operating temperature of +85 °c. The product belongs to a family pic16f. On the other hand, the pic16lf is the device core. The ADC has 10bit resolution. The timer has 8 bit, 16 bit resolution. Timers options include 1 x 16 bit, 2 x 8 bit. It contains 1 ADC units. It contains 16 pins. The product is available in surface mount configuration. Its accurate length is 4mm. In addition, the height is 0.95mm. It has 1.8 → 3.6 v of typical operating supply voltage. The ADCs included 1 (11 x 10 bit). Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it is composed of 1 SPI channels.
