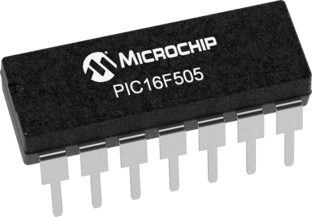

Microchip PIC16F505-I/P, 8bit PIC Microcontroller, 20MHz, 1024 x 12 words Flash, 14-Pin PDIP

PIC16F505-I-P Microchip PIC16F505-I/P, 8bit PIC Microcontroller, 20MHz, 1024 x 12 words Flash, 14-Pin PDIP
Microchip

Product Information

Dimensions:
0.775 x 0.28 x 0.195in
Number of I2C Channels:
0
Number of USART Channels:
0
USB Channels:
0
Width:
0.28in
Program Memory Size:
1024 x 12 words
RAM Size:
72 B
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
PDIP
Maximum Frequency:
20MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC16F
Device Core:
PIC
Length:
19.69mm
Pin Count:
14
Mounting Type:
Through Hole
Number of Ethernet Channels:
0
Height:
4.95mm
Typical Operating Supply Voltage:
2 → 5.5 V
Number of CAN Channels:
0
Number of SPI Channels:
0
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 20MHz 1024 x 12 words Flash 14-Pin PDIP manufactured by Microchip. The manufacturer part number is PIC16F505-I/P. The given dimensions of the product include 0.775 x 0.28 x 0.195in. Moreover, it comprises 0 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 0.28in wide. In addition, 1024 x 12 words is the program memory size. The product has typical 72 b RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of pdip. It features 20mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic16f. On the other hand, the pic is the device core. Its accurate length is 19.69mm. It contains 14 pins. The product is available in through hole configuration. It contains 0 dedicated ethernet channels . In addition, the height is 4.95mm. It has 2 → 5.5 v of typical operating supply voltage. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 0 SPI channels.
