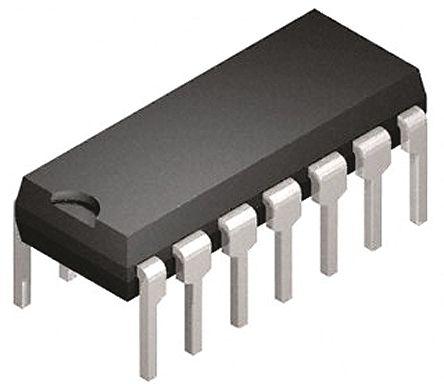

Microchip PIC16LF1824-E/P, 8bit PIC16LF Microcontroller, 32MHz, 7 kB Flash, 14-Pin PDIP

PIC16LF1824-E-P Microchip PIC16LF1824-E/P, 8bit PIC16LF Microcontroller, 32MHz, 7 kB Flash, 14-Pin PDIP
Microchip

Product Information

Dimensions:
0.775 x 0.325 x 0.195in
Number of I2C Channels:
1
Number of USART Channels:
1
USB Channels:
1
Width:
0.325in
Program Memory Size:
7 kB
Number of PWM Units:
2
RAM Size:
256 B
ADC Channels:
8
Number of Timers:
5
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
PDIP
Maximum Frequency:
32MHz
Maximum Operating Temperature:
+125 °C
Number of UART Channels:
1
Family Name:
PIC16F
Device Core:
PIC16LF
ADC Resolution:
10bit
Timer Resolution:
8 bit, 16 bit
Timers:
1 x 16 bit, 4 x 8 bit
Number of ADC Units:
1
Pin Count:
14
Pulse Width Modulation:
2
Mounting Type:
Through Hole
Length:
19.69mm
Height:
4.95mm
Typical Operating Supply Voltage:
1.8 to 3.6 V
ADCs:
1(8 x 10 bit)
Minimum Operating Temperature:
-40 °C
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC16LF Microcontroller 32MHz 7 kB Flash 14-Pin PDIP manufactured by Microchip. The manufacturer part number is PIC16LF1824-E/P. The given dimensions of the product include 0.775 x 0.325 x 0.195in. Moreover, it comprises 1 I2C channels. It contains 1 USART channels. The product integrates 1 USB channels. Furthermore, the product is 0.325in wide. In addition, 7 kb is the program memory size. Furthermore, it is composed of 2 PWM units. The product has typical 256 b RAM size. Additionally, it is composed of 8 ADC channels. It comprises 5 timers. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of pdip. It features 32mhz of maximum frequency. It has a maximum operating temperature of +125 °c. It is also composed of 1 UART channels. The product belongs to a family pic16f. On the other hand, the pic16lf is the device core. The ADC has 10bit resolution. The timer has 8 bit, 16 bit resolution. Timers options include 1 x 16 bit, 4 x 8 bit. It contains 1 ADC units. It contains 14 pins. The product carries 2 of pulse width modulation. The product is available in through hole configuration. Its accurate length is 19.69mm. In addition, the height is 4.95mm. It has 1.8 to 3.6 v of typical operating supply voltage. The ADCs included 1(8 x 10 bit). Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it is composed of 1 SPI channels.

pdf icon
PIC16(L)F1824/1828, 14/20-Pin Flash Microcontrollers with nanoWatt Technology(Technical Reference)
