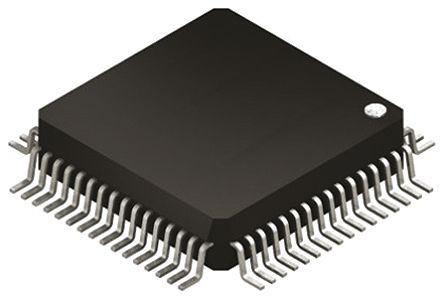

NXP MK12DX256VLH5, 32bit ARM Cortex M4 MCU, 50MHz, 320 kB Flash, 64-Pin LQFP

MK12DX256VLH5 NXP , 32bit ARM Cortex M4 MCU, 50MHz, 320 kB Flash, 64-Pin LQFP
NXP

Product Information

Dimensions:
10 x 10 x 1.6mm
Number of I2C Channels:
2
Width:
10mm
Program Memory Size:
320 kB
Number of PWM Units:
3
RAM Size:
36 kB
ADC Channels:
1
Number of Timers:
2
Data Bus Width:
32bit
Instruction Set Architecture:
ARM
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
50MHz
Maximum Operating Temperature:
+105 °C
Number of UART Channels:
3
Family Name:
Kinetis K1x
Device Core:
ARM Cortex M4
ADC Resolution:
16
Timers:
1 FTM External Clock, 1 Low Power Timer
Number of ADC Units:
2
Pin Count:
64
Pulse Width Modulation:
1 (2)-Quad Decoder, 1 (8) + 1 (2)-Motor Control
Mounting Type:
Surface Mount
PWM Channels:
12
Length:
10mm
Height:
1.6mm
Typical Operating Supply Voltage:
1.71 → 3.6 V
ADCs:
2-ch x 16-bit, 22-ch x 16-bit
Minimum Operating Temperature:
-40 °C
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 32bit ARM Cortex M4 MCU 50MHz 320 kB Flash 64-Pin LQFP manufactured by NXP. The manufacturer part number is MK12DX256VLH5. The given dimensions of the product include 10 x 10 x 1.6mm. Moreover, it comprises 2 I2C channels. Furthermore, the product is 10mm wide. In addition, 320 kb is the program memory size. Furthermore, it is composed of 3 PWM units. The product has typical 36 kb RAM size. Additionally, it is composed of 1 ADC channels. It comprises 2 timers. Moreover, the data bus width includes 32bit. The instruction set has arm architecture. It is a flash program memory type. The package is a sort of lqfp. It features 50mhz of maximum frequency. It has a maximum operating temperature of +105 °c. It is also composed of 3 UART channels. The product belongs to a family kinetis k1x. On the other hand, the arm cortex m4 is the device core. The ADC has 16 resolution. Timers options include 1 ftm external clock, 1 low power timer. It contains 2 ADC units. It contains 64 pins. The product carries 1 (2)-quad decoder, 1 (8) + 1 (2)-motor control of pulse width modulation. The product is available in surface mount configuration. It includes 12 PWM channels . Its accurate length is 10mm. In addition, the height is 1.6mm. It has 1.71 → 3.6 v of typical operating supply voltage. The ADCs included 2-ch x 16-bit, 22-ch x 16-bit. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it is composed of 1 SPI channels.

pdf icon
K12 Microcontroller Sub-Family Datasheet(Technical Reference)
