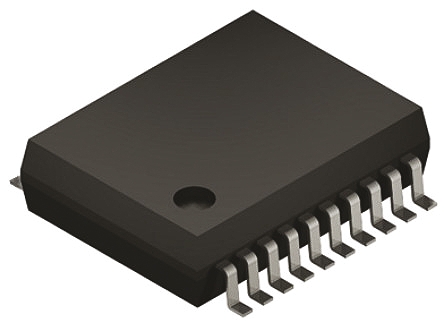

Microchip PIC24F16KL401-I/SS, 16bit PIC Microcontroller, 32MHz, 16 kB Flash, 20-Pin SSOP

PIC24F16KL401-I-SS Microchip PIC24F16KL401-I/SS, 16bit PIC Microcontroller, 32MHz, 16 kB Flash, 20-Pin SSOP
Microchip

Product Information

Dimensions:
7.5 x 5.6 x 1.85mm
Number of I2C Channels:
2
Number of USART Channels:
0
USB Channels:
0
Width:
5.6mm
Program Memory Size:
16 kB
Number of PWM Units:
3 x 10 bit
RAM Size:
1.024 kB
Data Bus Width:
16bit
Instruction Set Architecture:
Harvard
Program Memory Type:
Flash
Package Type:
SSOP
Maximum Frequency:
32MHz
Number of PCI Channels:
0
Number of LIN Channels:
2
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC24F
Device Core:
PIC
Length:
7.5mm
Number of ADC Units:
1
Pin Count:
20
Pulse Width Modulation:
3 x 10 bit
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.85mm
Typical Operating Supply Voltage:
1.8 → 3.6 V
ADCs:
12 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is 16bit PIC Microcontroller 32MHz 16 kB Flash 20-Pin SSOP manufactured by Microchip. The manufacturer part number is PIC24F16KL401-I/SS. The given dimensions of the product include 7.5 x 5.6 x 1.85mm. Moreover, it comprises 2 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 5.6mm wide. In addition, 16 kb is the program memory size. Furthermore, it is composed of 3 x 10 bit PWM units. The product has typical 1.024 kb RAM size. Moreover, the data bus width includes 16bit. The instruction set has harvard architecture. It is a flash program memory type. The package is a sort of ssop. It features 32mhz of maximum frequency. It contains 0 PCI channel . It includes 2 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic24f. On the other hand, the pic is the device core. Its accurate length is 7.5mm. It contains 1 ADC units. It contains 20 pins. The product carries 3 x 10 bit of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.85mm. It has 1.8 → 3.6 v of typical operating supply voltage. The ADCs included 12 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 2 SPI channels.

pdf icon
PIC24F16KL402 Datasheet(Technical Reference)
pdf icon
PIC24F "KL" Microcontroller Family(Technical Reference)
