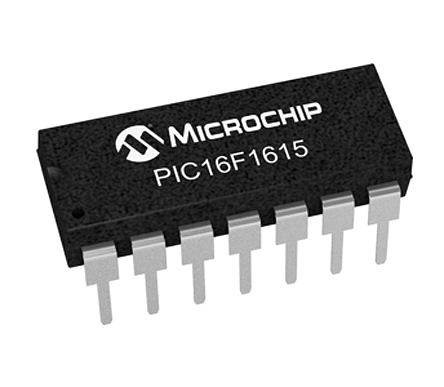

Microchip PIC16F1615-I/P, 8bit 8 bit CPU Microcontroller, 32MHz, 14 kB Flash, 14-Pin PDIP

PIC16F1615-I-P Microchip PIC16F1615-I/P, 8bit 8 bit CPU Microcontroller, 32MHz, 14 kB Flash, 14-Pin PDIP
Microchip

Product Information

Dimensions:
19.56 x 7.11 x 5.33mm
USB Channels:
0
Width:
7.11mm
Program Memory Size:
14 kB
Number of PWM Units:
2
RAM Size:
1.024 kB
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
PDIP
Maximum Frequency:
32MHz
Maximum Operating Temperature:
+85 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC16F
Device Core:
PIC
Length:
19.56mm
Number of ADC Units:
1
Pin Count:
14
Pulse Width Modulation:
2 x 10 bit
Mounting Type:
Through Hole
Height:
5.33mm
Typical Operating Supply Voltage:
2.3 → 5.5 V
ADCs:
8 x 10 bit
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is 8bit 8 bit CPU Microcontroller 32MHz 14 kB Flash 14-Pin PDIP manufactured by Microchip. The manufacturer part number is PIC16F1615-I/P. The given dimensions of the product include 19.56 x 7.11 x 5.33mm. The product integrates 0 USB channels. Furthermore, the product is 7.11mm wide. In addition, 14 kb is the program memory size. Furthermore, it is composed of 2 PWM units. The product has typical 1.024 kb RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of pdip. It features 32mhz of maximum frequency. It has a maximum operating temperature of +85 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic16f. On the other hand, the pic is the device core. Its accurate length is 19.56mm. It contains 1 ADC units. It contains 14 pins. The product carries 2 x 10 bit of pulse width modulation. The product is available in through hole configuration. In addition, the height is 5.33mm. It has 2.3 → 5.5 v of typical operating supply voltage. The ADCs included 8 x 10 bit. Whereas, the minimum operating temperature of the product is -40 °c.
